Description:
General Information
Manufacturer: IC INTRACOM
Manufacturer Part Number: 508261
Brand Name: Intellinet

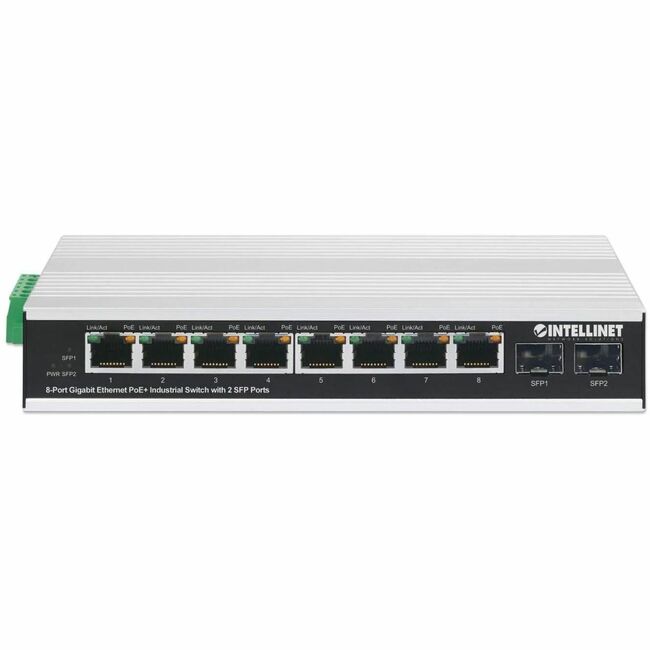

Product Name: Industrial 8-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports
Marketing Information:
8-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports - high-power PoE+ connectivity for harsh industrial environments
The 8-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports from Intellinet Network Solutions was designed to give you the network connections and device power you need in places that are less than calm or temperate. With its rugged, IP40-rated protective metal housing, the switch operates reliably and quietly, even in extreme temperatures that range from -40 to 167°F (-40 - 75?). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with power failure alarm and plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more.
Gigabit speeds paired with a large power budget
Featuring eight auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this unmanaged switch offers plenty of performance for the devices in your network. The switch features a PoE power budget of 240 W and can distribute a full 30 W (per the IEEE 802.3at standard) to every RJ45 port simultaneously. Also, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances.
- Provides power and data connections for up to eight PoE network devices
- Saves installation costs by delivering data and power over existing network cables
- IP40 slim-type metal housing to withstand harsh industrial conditions
- Wide operating temperature: -40 - 75? (-40 - 167°F)
- Option for DIN-rail installation
- 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
- Two small form-factor pluggable GBIC module slots (SFP)
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Power output up to 30 watts per port
- PoE power budget of 240 watts (depending on the power supply used)
- Two redundant DC inputs (45 - 57 V) with I/O terminal block
- Power failure alarm (one-way relay output, current load capacity 1A @ 24 V DC)
- Port surge protection up to 6 kV
- Grounding point to protect equipment from external electrical surges
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
Product Type: Ethernet Switch
Technical Information
Features: Surge ProtectionAlarm RelayIP40LED IndicatorFanlessInterfaces/Ports
Total Number of Network Ports: 8
Network (RJ-45): Yes
Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE+2 x Gigabit Ethernet Expansion SlotMedia & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T1000Base-XMaximum Data Transfer Rate: 128 MB/s
I/O Expansions
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3IEEE 802.3abIEEE 802.3afIEEE 802.3atIEEE 802.3uIEEE 802.3xIEEE 802.3iIEEE 802.3zManagement & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 240 W
Input Voltage: 45 V DC57 V DCPower Source: DC
Power Consumption: 255 W
Physical Characteristics
Product Material: Metal
Form Factor: DIN Rail Mountable
Height: 1.38" (35 mm)
Width: 3.98" (101 mm)
Length: 7.48" (190 mm)
Weight (Approximate): 15.80 oz (448 g)
Miscellaneous
Package Contents:
- Industrial 8-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports
- DIN-rail mount bracket
Warranty
Limited Warranty: 3 Year
