General Information

---

Manufacturer: CommScope, Inc
Manufacturer Part Number: 901-R650-WW00
Brand Name: CommScope
Product Model: R650

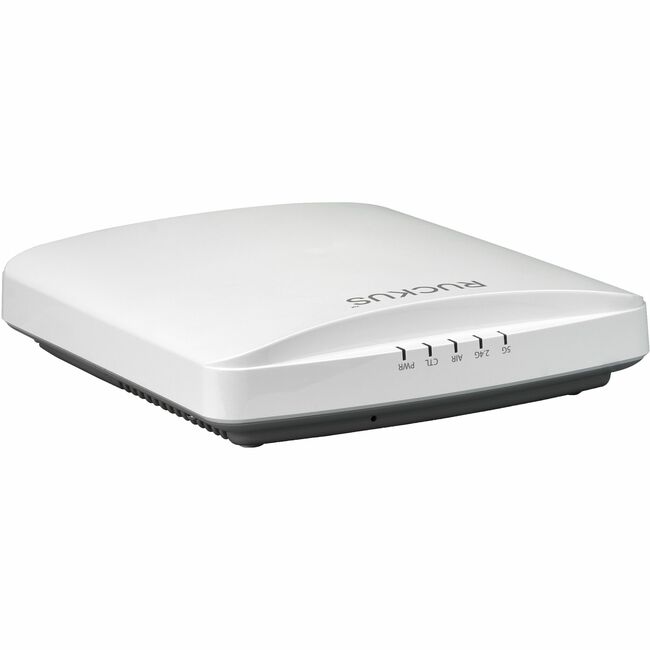

Product Name: R650 Wireless Access Point
Marketing Information: Wi-Fi capacity requirements in office buildings, classrooms, and retail venues are rapidly raising due to increase in Wi-Fi connected devices, non-Wi-Fi IoT devices and bandwidth hungry applications.
The R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our mid-range dual-band, dual-concurrent AP that supports six spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and many other non-Wi-Fi wireless technologies resulting in creation of network silos. Enterprises need a unified platform to eliminate network silos. The Ruckus AP portfolio is equipped to solve these challenges.
The R650 has built-in IoT radios with onboard BLE and Zigbee capabilities. In addition, the R650 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.
The R650 is packed with ruckus patented technologies in addition to Wi-Fi 6 features such as OFDMA, MU-MIMO and TWT. The R650 is ideal for medium-density deployments such as office buildings, K-12 classrooms, libraries and retail venues.
The R650 Wi-Fi 6 AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.

• BeamFlex+ Antennas: Extended coverage and optimized throughput with patented multi-directional antennas and radio patterns
• ChannelFly: Improved throughput with dynamically changing the channels to use least congested channel
• Ruckus Ultra-High-Density Technology Suite: Dramatically improved network performance with technologies such as Airtime Decongestion, Transient Client Management etc.

Whether you are deploying ten or ten thousand APs, the R650 is also easy to manage through Ruckus' physical and virtual management options.
Product Type: Wireless Access Point

Technical Information

---

Wireless LAN Standard: 802.11ax
Frequency Band:

2.40 GHz

5 GHz

Wireless Transmission Speed: 2.50 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes

Interfaces/Ports

---

Ethernet Technology:

2.5 Gigabit Ethernet

Gigabit Ethernet

Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
USB: Yes

Power Description

---

Power Consumption: 21.59 W

Physical Characteristics

---

Form Factor:

Ceiling Mountable

Wall Mountable

Desktop

Height: 1.85" (47 mm)
Width: 7.64" (194 mm)
Depth: 8.82" (224 mm)
Weight (Approximate): 1.88 lb (854 g)
