Product ID: 1066649392
Category:

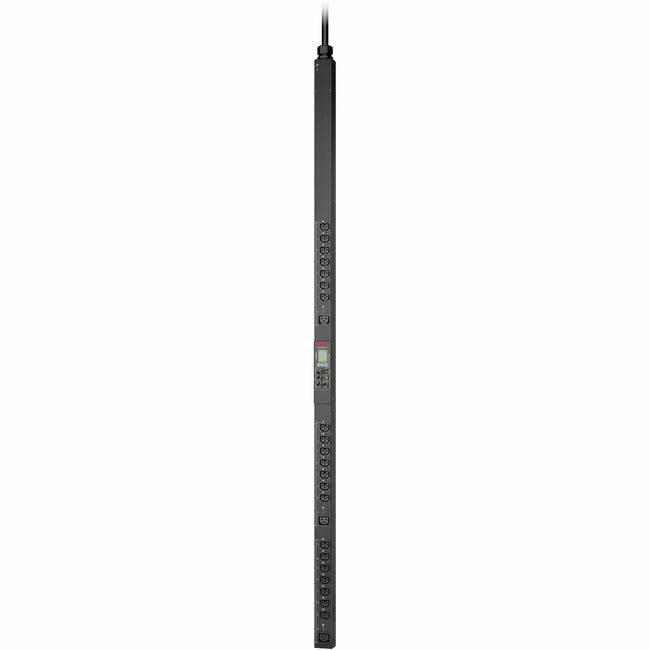

APC Rack PDU 9000 Switched, ZeroU, 11.5kW, 208V, (21) C13/C15 & (3) C19/C21
Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: APDU9981NA3
Brand Name: APC by Schneider Electric
Product Series: 9000
Product Name: Rack PDU 9000 Switched, ZeroU, 11.5kW, 208V, (21) C13/C15 & (3) C19/C21
Marketing Information:
It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 415V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60309 20A 3P + N + PE plug. The PDU is designed for ZeroU mounting.
Product Type: PDU
Technical Information
PDU Type: Switched
Phase: Single Phase
Plug/Connector Type: IEC 60309 20A 3P+N+PE
Receptacle Type: IEC 60320 C13/C15IEC 60320 C19/C21Receptacle Detail: 21 x IEC 60320 C13/C153 x IEC 60320 C19/C21Protection Type: Circuit Protection
Power Description
Input Voltage: 415 V
Output Voltage: 208 V AC240 V ACPower Rating (VA): 11.50 kVA
Power Rating (Watt): 11.50 kW
Input Current: 16 A
Management
Management:
Remote Outlet Switching: Yes
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Form Factor: Tower
Placement: Side
Rack Height: 0U
Cord Length: 6 ft (1.82 m)
Height: 70.51" (1791 mm)
Width: 2.17" (55 mm)
Depth: 1.81" (46 mm)
Weight (Approximate): 15.43 lb (6998.93 g)
Miscellaneous
Package Contents: Rack PDU 9000 Switched, ZeroU, 11.5kW, 208V, (21) C13/C15 & (3) C19/C21 Installation guideRack mounting bracketsSafety guide
Country of Origin: India
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace
