Description:
General Information
Manufacturer: The Siemon Company
Manufacturer Part Number: 9C6R4-A5-02AR1A
Brand Name: Siemon
Product Line: Z-MAX

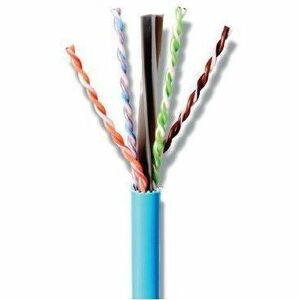

Product Name: Category 6A UTP Cable - US
Marketing Information:
Siemon's Category 6A UTP cable provides channel performance exceeding TIA and ISO/IEC 6A requirements when used with Z-MAX™ 6A UTP connectivity. Siemon's category 6A UTP cable with cross separator uses a central pair separator for optimal pair-to-pair crosstalk isolation as well as Internal Longitudinal Striation (ILS™) jacket construction to reduce alien crosstalk (AXT) coupling between adjacent cables.
Package Type: Bulk
Product Type: Network Cable
Technical Information
Cable Type: Category 6a
Cable Length: 1000 ft (304.80 m)
Cable Shielding Type: Unshielded Twisted Pair (UTP)
Connector Type on First End: Bare Wire
Connector Type on Second End: Bare Wire
Shielding: No
Jacket Type: CMPRiserCMRCSA FT4CMP-LPFT4Device Supported: Network Device
American Wire Gauge: 23 AWG
Data Transfer Rate: 10 Gbit/s
Number of Pairs: 4
Number of Conductors: 8
Features: Alien Cross Talk (AXT)Attenuation Crosstalk Ratio Far-end (ACR-F)Crosstalk ProtectionLead-freeNear End Cross Talk (NEXT)PoEPower Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF)Power-sum Alien Near End Crosstalk (PSANEXT)Power-sum Attenuation To Alien Crosstalk Ratio Far End (PSAACRF)Power-sum Near End Crosstalk (PSNEXT)Physical Characteristics
Color Family: White
Product Color: White
Jacket Color: White
Product Material: Polyvinyl Chloride (PVC)Fire Resistant Polyvinyl Chloride (FR-PVC)Bare CopperInsulation Material: Fluorinated Ethylene Propylene (FEP)High-density Polyethylene (HDPE)Jacket Material: Polyvinyl Chloride (PVC)
0 items
):
$531.95
