General Information

---

Manufacturer: Digi International
Manufacturer Part Number: TX54-A146
Brand Name: Digi
Product Model: TX54

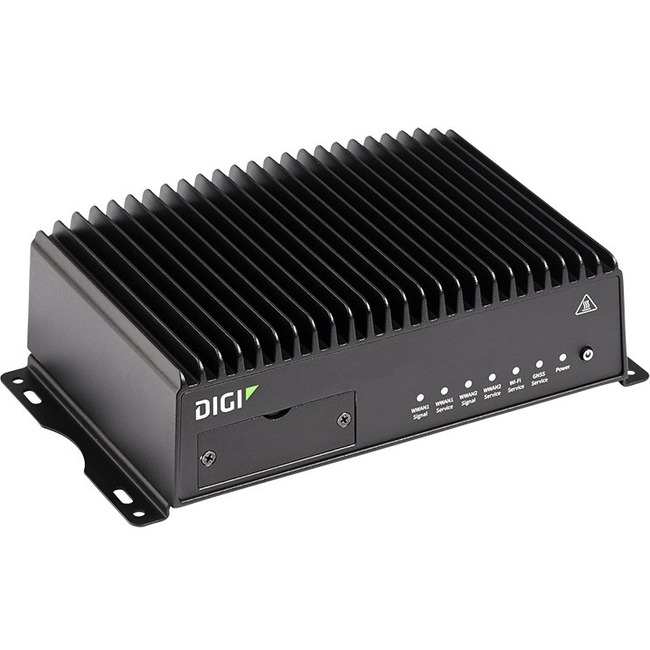

Product Name: Dual Cellular / Dual Wi-Fi Mobile Access Router
Marketing Information: Rugged and secure cellular router for mission critical industrial and transportation applications, including models for public safety networks

The versatility and performance of Digi TX54 routers make them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. Digi TX54 provides secure routing and gateway functionality across wired and wireless communication networks. Local private subnets are bridged across public networks to safeguard privacy and integrity.

Digi TX54 is available with dual Wi-Fi radios to segment passenger Wi-Fi from fare collection, data, video and other applications, and offers models with both single and dual LTEAdvanced or LTE-Advanced Pro cellular modules.

Designed to meet the demands of first responders, Digi TX54 includes concurrent and independent dual cellular interfaces that prioritize critical communications. The industrial-grade design supports the most rugged conditions, including vibration and temperature changes. A Python development environment allows for edge computing and intelligence.

Four Gigabit Ethernet ports connect other IP-capable systems, each configurable as an isolated secure LAN, or all four can function as a Layer 2 switch. Digi TrustFence®, a suite of hardware and firmware features, ensures the integrity of Digi TX54 security functions. Chip-level encryption protects the onboard file system.
Product Type: Modem/Wireless Router

Technical Information

---

Wi-Fi Generation: Wi-Fi 5

Wireless Specifications

---

Broadband Transmission Technology:

Cellular

Ethernet

Wireless LAN Standard: IEEE 802.11ac
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 5 GHz
Cellular Generation: 4G
Cellular Data Connectivity Technology:

LTE

HSPA+

Total Wireless Transmission Speed: 108.38 MB/s

Interfaces/Ports

---

Number of Network (RJ-45) Ports: 1
USB: Yes
Number of Broadband (RJ-45) Ports: 3

Network & Communication

---

Ethernet Technology: Gigabit Ethernet
VPN Supported: Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 4
SIM Size Supported: Mini

Physical Characteristics

---

Form Factor: DIN Rail Mountable
Height: 2.50" (63.50 mm)
Width: 8.25" (209.50 mm)
Depth: 5.75" (146.10 mm)
Weight (Approximate): 3.30 lb (1496.85 g)

Miscellaneous

---

Environmentally Friendly: Yes
Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Restriction of Hazardous Substances (RoHS) 2

Restriction of Hazardous Substances (RoHS) 3

Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

---

Limited Warranty: 3 Year
