General Information

---

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MS120-8LP-HW
Brand Name: Meraki
Product Series: MS120
Product Model: MS120-8LP

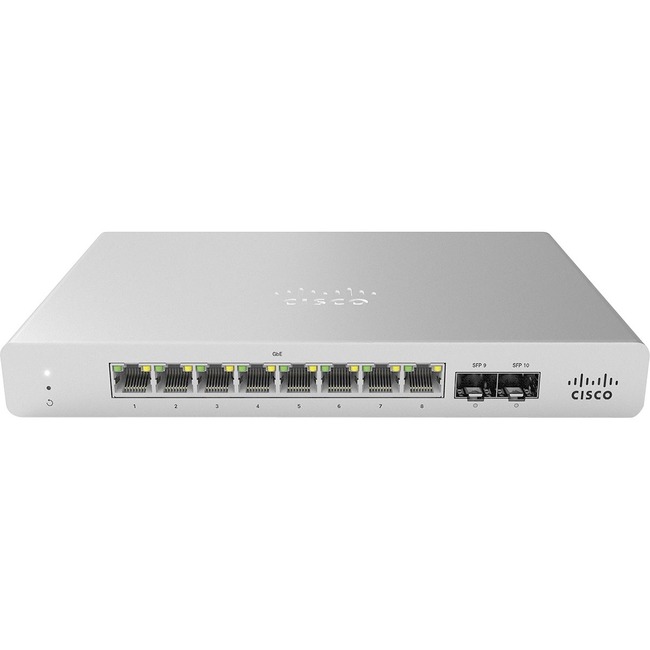

Product Name: MS120-8LP 1G L2 Cloud Managed 8x GigE 64W PoE Switch
Marketing Information:

CLOUD-MANAGED COMPACT ACCESS SWITCHES

Cisco Meraki MS120-8 compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location.

Cisco Meraki switches are built from the ground-up to be easily managed without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.

Meraki's centralized management gives administrators deep visibility into the network and how it's used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.
Product Type: Ethernet Switch

Interfaces/Ports

---

Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

8 x Gigabit Ethernet Network

2 x Gigabit Ethernet Uplink

Media & Performance

---

Media Type Supported:

Twisted Pair

Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

10/100/1000Base-T

1000Base-X

I/O Expansions

---

Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2

Network & Communication

---

Layer Supported: 2

Management & Protocols

---

Manageable: Yes

Power Description

---

Power Source: Power Supply
Redundant Power Supply Supported: No
Power Consumption: 88 W

Physical Characteristics

---

Form Factor:

Wall Mountable

Desktop

Height: 1.10" (27.94 mm)
Width: 8.74" (222 mm)
Depth: 5.91" (150.11 mm)
Weight (Approximate): 2.76 lb (1251.91 g)

Miscellaneous

---

Package Contents:

• MS120-8LP 1G L2 Cloud Managed 8x GigE 64W PoE Switch
• 1 x Mounting Screw Kit and Anchor
• 1 x External Power Supply

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China

Warranty

---

Limited Warranty: Lifetime
