General Information

---

Manufacturer: Eaton Corporation
Manufacturer Part Number: T020-001-PSF
Brand Name: Tripp Lite series
Product Model: T020-001-PSF

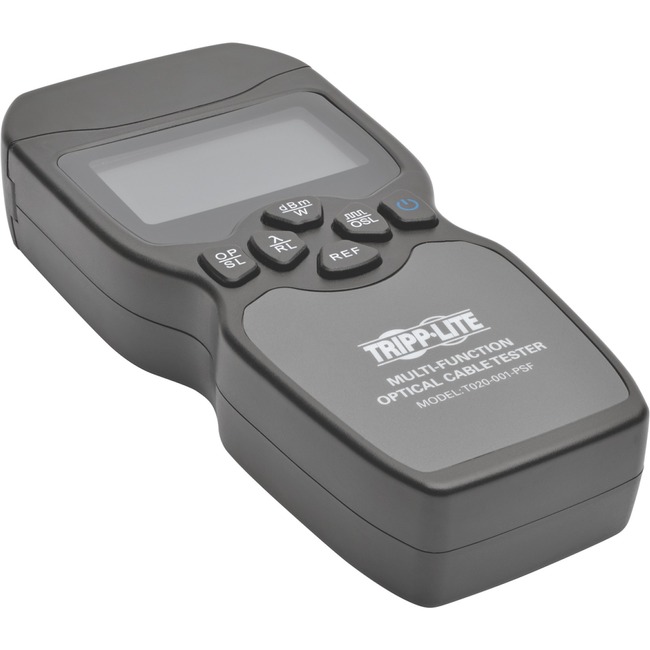

Product Name: T020-001-PSF Multi-Function Optical Fiber Cable Tester
Marketing Information: The all-in-one T020-001-PSF Multi-Function Optical Fiber Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. The combination power meter/light source/visual fault locator allows you to test fiber optic cables for breaks, insertion loss and optical power loss. It features FC connectors with optional SC, ST and LC adapters available.

The power meter supports 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm and 1625 nm wavelengths, while the light source supports 1310 nm and 1550 nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status.

Three AA batteries are included, and the auto-off function preserves battery power. If you're using rechargeable AA batteries, the USB Micro-B port charges them via connection to a USB wall charger or a computer's USB port. When not in use, the T020-001-PSF can be stored in its handy carrying case.

More from the Manufacturer

Product Type: Testing Device

Technical Information

---

Device Function:

Frequency Measurement

Fiber Optic Cable Testing

Optical Power Testing

Cable Fault Testing

Power Monitoring

Cable Signal Testing

Power Level Testing

LAN Cable Testing

Network Testing

Insertion Loss Measurement

Optical Power Loss

Visual Fault Locator

Interfaces/Ports

---

HDMI: No
DVI: No
VGA: No
USB: Yes
Serial Port: No
Serial V.35 Interface: No
Audio Line Out: No
PoE (RJ-45) Port: No
Network (RJ-45): No

Media & Performance

---

Media Type Supported:

Optical Fiber

Coaxial

Twisted Pair

Battery Information

---

Number of Batteries Supported: 3
Battery Size Supported: AA
Battery Included: Yes
Battery Rechargeable: Yes

Miscellaneous

---

Package Contents:

• T020-001-PSF Multi-Function Optical Fiber Cable Tester
• 3 x AA Batteries
• Cleaning Swabs
• Carrying Case
• Owner's Manual

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 2 Year
