Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8881
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Series: Metered
Product Model: AP8881

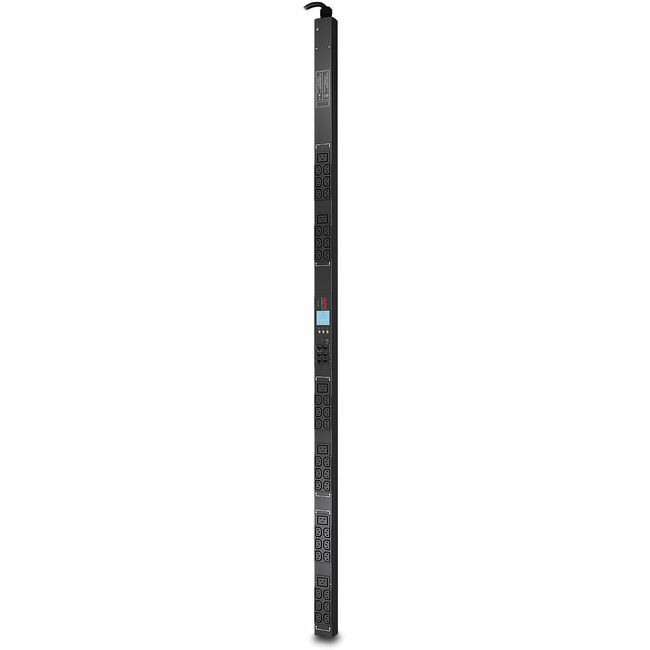

Product Name: Metered AP8881 42-Outlets PDU
Marketing Information:
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates
Product Type: PDU
Technical Information
PDU Type: Metered
Plug/Connector Type: IEC 60309 16A 3P+N+PEIEC 60309 20A 3P+N+PEPower Description
Input Voltage: 400 V
Output Voltage: 230 V AC
Physical Characteristics
Mount Type: Rack-mountable
Rack Height: 0U
Cord Length: 6 ft (1.82 m)
Height: 70.51" (1791 mm)
Width: 2.17" (55.12 mm)
Depth: 1.73" (44 mm)
Weight (Approximate): 14.07 lb (6382.04 g)
Miscellaneous
Package Contents: Metered AP8881 42-Outlets PDU Installation guideRack mounting bracketsSafety guideSerial configuration cable
Country of Origin: India
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
