General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMX2200RMHV2U
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SMX
Product Model: SMX2200RMHV2U

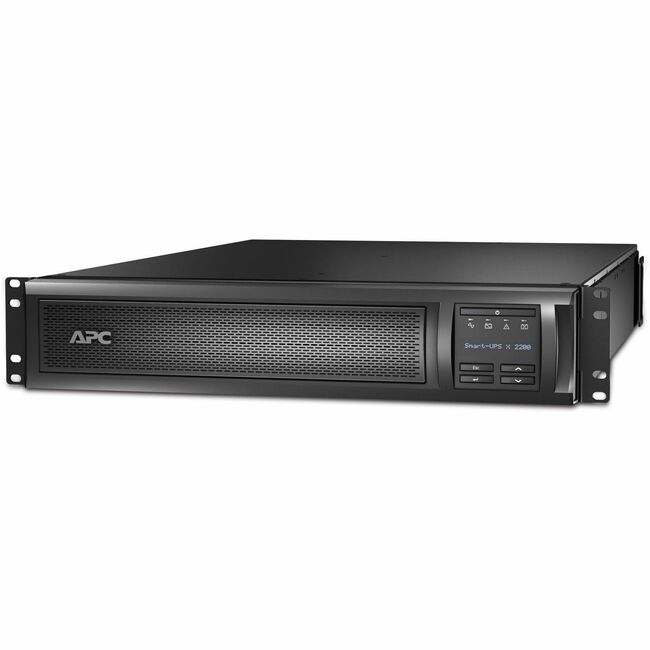

Product Name: Smart-UPS 2200 VA Tower/Rack Mountable UPS
Marketing Information: This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Product Type: Line-interactive UPS

Technical Information

---

Plug/Connector Type:

British BS1363A

IEC 320-C20

Receptacle Type: Schuko CEE 7/EU1-16P
Receptacle Detail:

1 x IEC 320-C19

2 x IEC Jumper

8 x IEC 320-C13

Number of Battery & Surge Outlets: 11
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms

Power Description

---

Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.98 kW
Input Voltage:

208 V

230 V

Output Voltage:

208 V AC

230 V AC

Waveform Type: Sine Wave
Surge Energy Rating: 645 J

Interfaces/Ports

---

Serial Port: Yes
USB: Yes

Battery Information

---

Battery Characteristics: Maintenance-free, Sealed, Spill-proof
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 10 Minute
Backup/Run Time (Half Load): 25 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

---

Product Color: Black
Height: 3.35" (85 mm)
Width: 17.01" (432 mm)
Depth: 26.26" (667 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 82.28 lb (37321.58 g)

Miscellaneous

---

Package Contents:

Smart-UPS 2200 VA Tower/Rack Mountable UPS

CD with software

Documentation CD

Rack mounting brackets

Smart UPS signalling RS-232 cable

USB cable

User manual

Software Included: Powerchute Serial Edition
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
