Description:
General Information
Manufacturer: Eaton Corporation
Manufacturer Part Number: SU6000RT4UTFHW
Brand Name: Tripp Lite by Eaton
Product Line: SmartOnline
Product Series: EZ
Product Model: SU6000RT4UTFHW

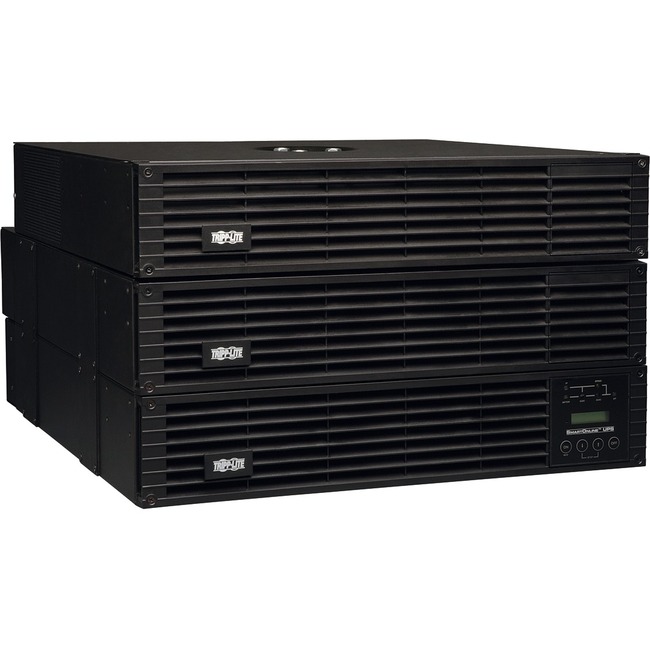

Product Name: SmartOnline EZ SU6000RT4UTFHW 6000 VA Tower/Rack Mountable UPS
Marketing Information:
Tripp Lite SU6000RT4UTFHW 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 6U rack/tower compatible configuration. Maintains full-time sine wave output within 2% of selectable 208/240V and 120V nominal at 60Hz during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Included PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS. Hardwire input. Hardwire UPS output, plus 1 L6-30R, 8 5-15/20R and 4 5-15R outlets.
More from the Manufacturer
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Receptacle Type: NEMA 5-15RNEMA L6-30RNEMA 5-15/20RReceptacle Detail: 4 x NEMA 5-15R1 x NEMA L6-30R8 x NEMA 5-15/20RTransfer Time: 0 ns
Power Description
Load Capacity (VA): 6 kVA
Load Capacity (Watt): 5.40 kW
Input Voltage: 208 V AC240 V ACInput Current: 30.60 A
Output Voltage: 120 V AC208 V AC240 V ACManagement
Network Management: SNMP Manageable
Interfaces/Ports
Serial Port: Yes
USB: Yes
Battery Information
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 8.50 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 6 Hour
Physical Characteristics
Height: 6.85" (173.99 mm)
Width: 17.50" (444.50 mm)
Depth: 20.70" (525.78 mm)
Rack Height: 6U
Form Factor: Rack/Tower
Weight (Approximate): 116.20 lb (52707.43 g)
Miscellaneous
Package Contents:
- SmartOnline EZ SU6000RT4UTFHW 6000 VA Tower/Rack Mountable UPS
- PowerAlert Software Suite CD
- USB Cable
- Serial Cable
- EPO Cable
- Rail Kit
- 2U Low Voltage Transformer
Software Included: PowerAlert Software Suite
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
