Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SBP5000RMT2U
Brand Name: APC by Schneider Electric
Product Name: 19" Rack Mountable 24A Maintenance Bypass Panel
Marketing Information:

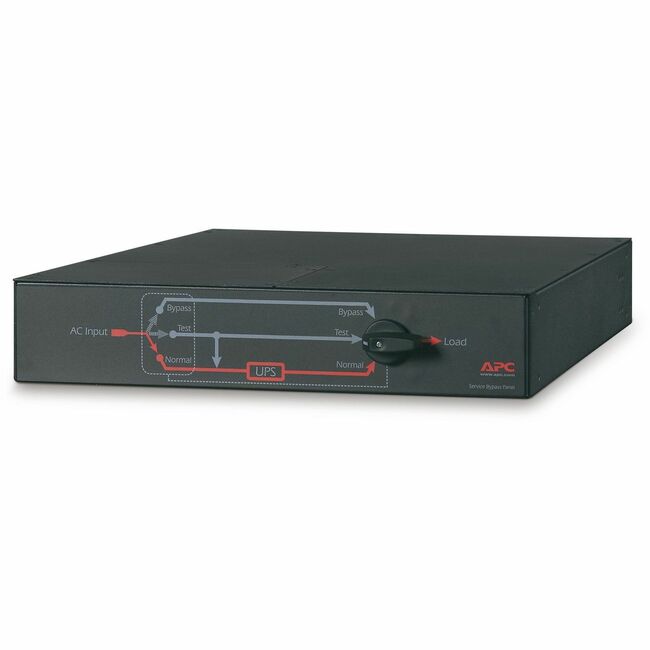

The APC SBP5000RMT2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires L6-30P input and offers (2) L6-30R, (2) L6-20R outlets. The panel is 2U in height with 208V input and user selectable 200V/208V/240V output voltage. This panel comes with a 2-year warranty.
Packaged Quantity: 1 Each
Product Type: Bypass Panel
Technical Information
Plug/Connector Type: NEMA L6-30P
Receptacles: 2 x NEMA L6-20R2 x NEMA L6-30RProtection Type: Overload
Power Description
Load Capacity (VA): 5 kW
Input Voltage: 200 V AC208 V ACOutput Voltage: 200 V AC208 V ACCurrent: 24 A
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.50" (89 mm)
Width: 17.01" (432 mm)
Depth: 25.98" (660 mm)
Weight (Approximate): 30.07 lb (13639.52 g)
Miscellaneous
Package Contents: 19" Rack Mountable 24A Maintenance Bypass Panel Installation guideRack mounting bracketsUser manual
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information: 2 years (parts only)
