Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: PDM3520L2120-260
Brand Name: APC by Schneider Electric

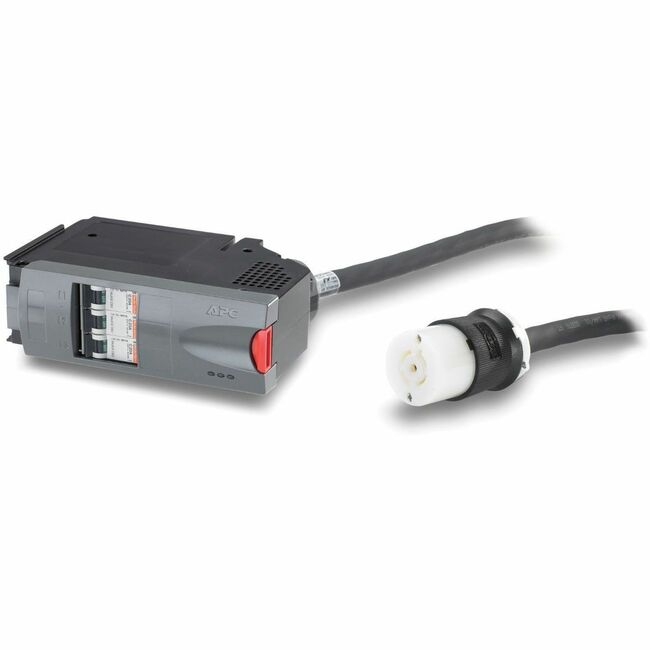

Product Name: 3 Pole 5 Wire Power Distribution Module
Marketing Information:
This 3 Pole 5 Wire Power Distribution Module simplify both the global deployment of a standard power distribution system and the expansion of existing APC Modular Power Distribution Unit solutions. A variety of breaker and connector options can be chosen to supply either three-phase or single-phase power to the load. Safety features of the Power Distribution Modules include a latch that disconnects the breaker from AC utility power, connectors with positive locking mechanisms, and isolation of all touch points. Built-in monitoring supplies information about the power consumption of connected devices.
Product Type: Power Module
Technical Information
Receptacles: 1 x NEMA L21-20P
Power Description
Input Voltage: 220 V AC
Output Voltage: 208 V AC
Physical Characteristics
Height: 5" (127 mm)
Width: 17.50" (444.50 mm)
Depth: 16" (406.40 mm)
Weight (Approximate): 3.90 kg
Miscellaneous
Package Contents:
- 3 Pole 5 Wire Power Distribution Module
- Installation Guide
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 1 Year
