Description:
General Information
Manufacturer: Synology, Inc
Manufacturer Part Number: RS3626XS
Brand Name: Synology
Product Line: RackStation
Product Model: RS3626XS

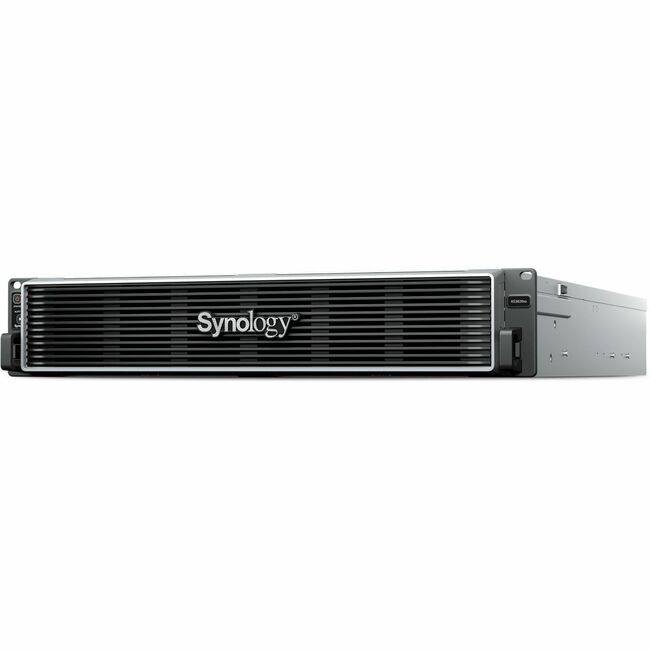

Product Name: RackStation RS3626XS SAN/NAS Storage System
Marketing Information:
Gartner Peer Insights
Trusted by professionals across all industries.
Safeguard your operations with confidence | Fast and reliable
Over 6,300/3,700 MB/s seq. read/write, built-in dual-port 10GbE, and up to 864 TB raw storage after expansion.
Flexible configuration
Add 24 extra drive bays, 10/25GbE ports, and SSD cache5 volumes whenever needed.
Versatile business application platform
Back up endpoints, manage up to 90 IP cameras6, or safely sync and share files across sites.
Designed for reliability | Redundant power
Redundant power supplies ensure maximum server uptime by preventing single-point power failures.
Failover cluster
Maximize service continuity by pairing two identical units into a Synology High Availability cluster, ensuring automated, minute-level failover in the event of hardware failure.
Network redundancy and load balancing
Built-in 2x 10GbE ports can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Accommodates future expansion
The RS3626xs can be flexibly configured to meet evolving needs through faster networking, local SSD cache, or increased storage.
Packaged Quantity: 1
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 12
Number of Solid State Drive Supported: 12
Processor & Chipset
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: D-1726
Processor Core: Octa-core (8 Core)
Processor Speed: 2.90 GHz
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: Gigabit Ethernet10 Gigabit EthernetI/O Expansions
Number of Total Expansion Bays: 12
Number of 2.5"/3.5" Bays: 12
Total Number of Expansion Slots: 2
Expansion Slot Type: PCI Express 4.0 x8
Controllers
Controller Type: Serial ATA
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, Basic, JBOD, RAID F1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Software
Operating System: DiskStation Manager
Management & Protocols
Protocols: CIFSAFPNFSFTPWEBDAVSMB 1.0SMB 2.0SMB 3.0NFSv3NFSv4NFSv4.1iSCSIHTTPHTTPSSNMPLDAPCalDAVDLNARSyncPower Description
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 550 W
Redundant Power Supply: Yes
Physical Characteristics
Cooling Fan: Yes
Height: 3.46" (88 mm)
Width: 18.98" (482 mm)
Depth: 28.50" (724 mm)
Form Factor: Rack-mountable
Rack Height: 2U
Compatible Drive Bay Width: 2.5"3.5"Weight (Approximate): 31.97 lb (14500 g)
