Product ID: 1089006154

Category:

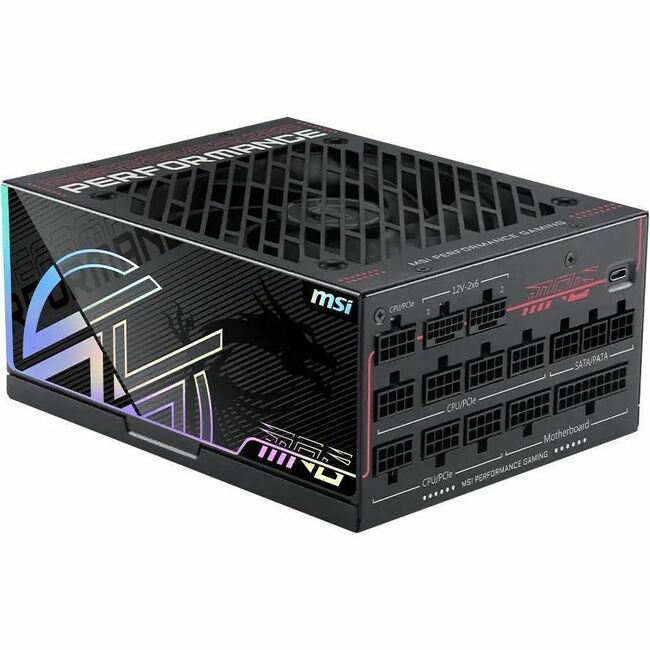

MSI MPG 1600W Power Supply


MSI MPG 1600W Power Supply

Price (CDN): $659.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $659.95

Quantity:




Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: MPGAI1600TSPCIE5
Brand Name: MSI
Product Series: MPG
Product Name: MPG 1600W Power Supply
Marketing Information:

The Reliable Engine of Your PC Build

Support MSI Exclusive GPU Safeguard+, a comprehensive, precision-engineered protection system designed to keep your GPU secure across all computing scenarios.

  • GPU SAFEGUARD+
  • SiC MOSFETs
  • FAN SAFEGUARD
  • EZ DIY
  • ATX 3.1 READY
  • PCIe 5.1 READY

Premium Protection | PERFORMANCE | SiC MOSFETs | ROCK-SOLID STABILITY, PEAK EFFICIENCY

The first of server-grade materials are used in the interleaved PFC MOSFETs to enhance stability, improve overall efficiency, reduce losses, and optimize heat dissipation.

Ultimate Proof PSU

It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

TITANIUM

The efficiency of your power supply significantly impacts overall power consumption. A Titanium certification serves as an outstanding benchmark for energy efficiency, ensuring lower power consumption while maintaining optimal performance at higher efficiency levels.

2 x 12V-2x6

Comes with 2 x native 12V-2x6 connectors.

STABLE POWER DELIVERY

Minimizing the +12V regulation fluctuation into ±1%.

FULL DIGITAL DESIGN

The MCU controller can quickly manage dynamic adjustments.

THERMAL | Low Sound Level | Unheard of Quiet. Pure Focus

This power supply is designed for quiet operation, with noise levels just like in night, ensuring a peaceful computing experience without any disturbances.

Zero Fan Mode | Enjoy the Silence of Zero RPM

Equipped with Zero Fan Mode. When the system is operating under low load (TDP below 50%), the fan will stop operation completely, providing you with absolute zero noise (0 dBA)! Enjoy the deep, silence exclusively during document processing or multimedia entertainment.

Fluid Dynamic Bearing

This power supply's comes with 135 mm fan sports a fluid dynamic bearing, chosen to increase the life span of the fan while maintaining low noise level.

DURABILITY | Server-grade Electrolytic 105°C Capacitor

Aiming for unwavering product quality and performance stability, the MPG gaming power supply comes with 100% Japanese 105° C capacitors. It is designed for efficient power conversion and long-lasting, safe operation.

Alloy Copper Connector Terminals

The cable connectors are made of copper alloy terminals so that the power supply will be safer when there is a higher surge in current.

Built for Maximum Safety

The power cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

PROTECTION

Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.

EZ DIY | Dual-color 16 Pin cable

The 12V-2x6 cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.


Product Type: Power Supply
Technical Information
Specification Compliance: ATX 3.1
Efficiency: 94%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Fluid Dynamic Bearing
Fan Diameter: 135 mm (5.31")
Protection Type:
  • Over Voltage
  • Over Current
  • Over Temperature
  • Over Power
  • Short Circuit
  • Surge & Inrush Protection
  • Under Voltage
  • No Load
  • Modular: Yes
    Modular Type: Fully Modular
    Features:
  • Low Noise
  • On/Off Switch
  • Heat Dissipation
  • Power Description
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Number of +12V Rails: 1
    Output Voltage:
  • 5 V DC
  • 3.3 V DC
  • 12 V DC
  • 5 V SB
  • Output Voltage Detail:
  • 5 V DC @ 22 A
  • 3.3 V DC @ 22 A
  • 12 V DC @ 133.3 A
  • 5 V SB @ 3 A
  • Output Current:
  • 22 A
  • 133.30 A
  • 3 A
  • Output Power: 1.60 kW
    Interfaces/Ports
    Number of SATA Power Connectors: 8
    PCI Express Connector: Yes
    PCI Express Version: 5.1
    Number of (6+2 pin) PCI Express Power Connectors: 7
    Number of (4+4 pin) CPU Power Connectors: 1
    Number of 4-pin Molex Power Connectors: 4
    Physical Characteristics
    Form Factor: ATX
    Height: 3.39" (86 mm)
    Width: 7.48" (190 mm)
    Depth: 5.91" (150 mm)
    Miscellaneous
    Energy Efficiency Certification: 80 Plus Titanium
    Warranty
    Limited Warranty: 12 Year
