Product ID: 1089005817

Category:

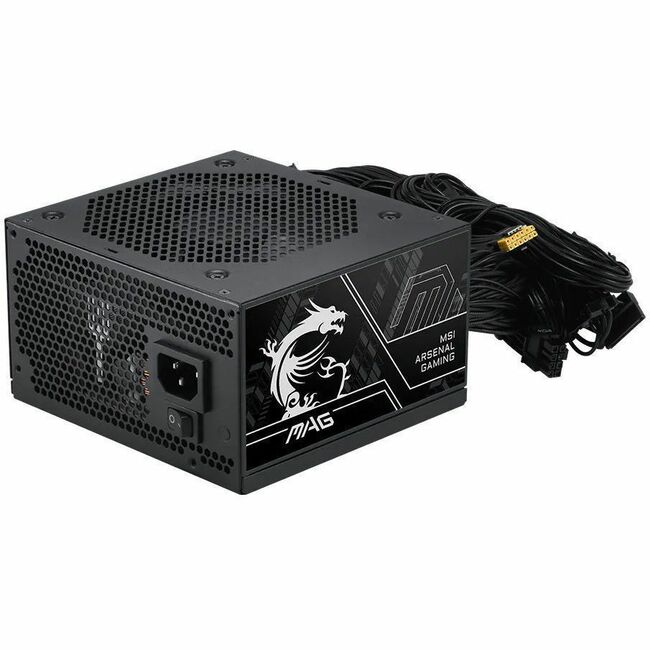

MSI MAG 650W Power Supply


MSI MAG 650W Power Supply

Price (CDN): $119.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $119.95

Quantity:




Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: MAGA650BNPCIE5III
Brand Name: MSI
Product Series: MAG
Product Name: MAG 650W Power Supply
Marketing Information:

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

80 PLUS BRONZE CERTIFIED

The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

ATX 3.1 READY

It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Embossed Jacket Modular Cable

Using premium materials to enhance the cable's flexibility and bendability, the sleek matt black design not only elevates its appearance but also makes cable management significantly easier and more sophisticated for users.

Dual-color 12V-2x6 cable

The 12V-2x6 cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.

Offer the CPU sufficient power

This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.

  • 8+8 power connector
  • 8+4 power connector

POWER AT YOUR SIDE

The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.

SET FREE FOR THE +12V POWER OUTPUT

The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.

Alloy Copper Connector Terminals

The cable connectors are made of copper alloy terminals so that thepower supply will be safer when there is a higher surge in current.

Built for Maximum Safety

The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

Connectors

This non-modular power supply equipped with black flat cables, making cable management.


Product Type: Power Supply
Technical Information
Specification Compliance: ATX 3.1
Efficiency: 85%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Hydraulic Bearing
Fan Diameter: 120 mm (4.72")
Protection Type:
  • Over Current
  • Over Voltage
  • Over Power
  • Short Circuit
  • Under Voltage
  • Modular: No
    Features:
  • Heat Dissipation
  • Low Noise
  • Power Description
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Number of +12V Rails: 1
    Output Voltage:
  • 5 V DC
  • 3.3 V DC
  • 12 V DC
  • 5 V SB
  • Output Voltage Detail:
  • 5 V DC @ 15 A
  • 3.3 V DC @ 15 A
  • 5 V SB @ 2.5 A
  • 12 V DC @ 54 A
  • Output Current:
  • 15 A
  • 54 A
  • 2.50 A
  • Output Power: 650 W
    Interfaces/Ports
    Number of SATA Power Connectors: 3
    PCI Express Connector: Yes
    PCI Express Version: 5.1
    Number of (6+2 pin) PCI Express Power Connectors: 2
    Number of (4+4 pin) CPU Power Connectors: 1
    Number of 4-pin Molex Power Connectors: 2
    Physical Characteristics
    Form Factor: Internal
    Height: 3.39" (86 mm)
    Width: 5.91" (150 mm)
    Depth: 5.51" (140 mm)
    Miscellaneous
    Energy Efficiency Certification: 80 Plus Bronze
    Warranty
    Limited Warranty: 5 Year
