Product ID: 1088953072

Category:

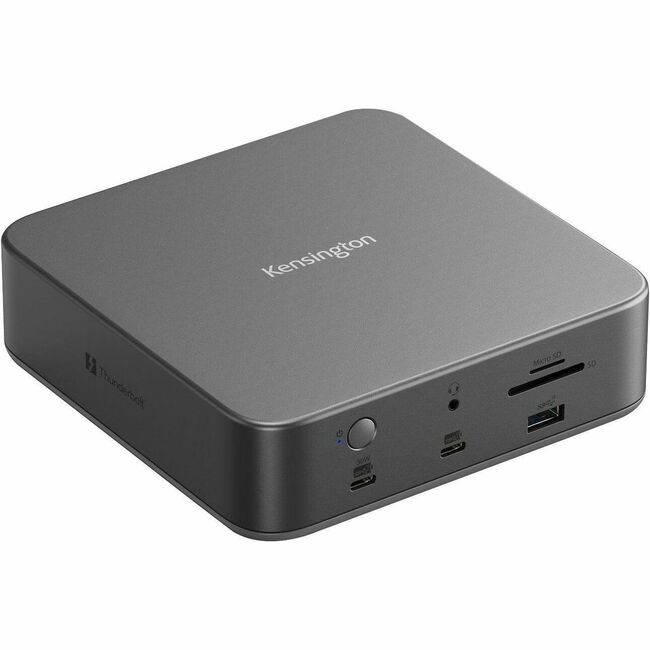

Kensington SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS


Kensington SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS

Price (CDN): $408.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $408.95

Quantity:




Description:
General Information
Manufacturer: Kensington Computer Products Group
Manufacturer Part Number: K35231NA
Brand Name: Kensington
Product Model: SD5010T5
Product Name: SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS
Marketing Information:

Boost Your Productivity with Thunderbolt™ 5

SD5010T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.

Triple 4K or Dual 8K for Windows and Dual 6K+4K for macOS

Supports up to 3 x 4K monitors @ 144Hz or 2 x 8K @ 60Hz/30Hz monitors for Windows laptops via two HDMI® ports and one Thunderbolt™ 5 port. For MacBook models with M4/M5 base chips* and M-Series Pro and Max chipsets, it supports 2 x 4K @ 60Hz via two HDMI® ports, or you can switch one of the displays to up to 6K through the Thunderbolt™ 5 port. *M1/M2 base chips support a single external display only. M3 base supports two external displays with the lid closed.

Up to 140W Dynamic Power Delivery + KonstantCharge™

Perfect for demanding workstations, this single-cable Thunderbolt™ 5 dock supports USB-C® PD 3.1, ensuring seamless power and connectivity with up to 140W dynamic power delivery. Includes KonstantCharge™, enabling connected devices to charge even when your laptop is undocked.

13-in-1 Design

A single Thunderbolt™ 5 cable expands your connectivity: 2 x Thunderbolt™ 5 (host + 15W downstream), 2 x HDMI®, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x USB-C® Gen2 10Gbps (1 x 30W), an audio combo jack, 2 x SD/Micro SD 4.0 slots, and 2.5Gbps Ethernet.

Built-in SD and Micro SD Card Readers

Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5010T5 transfers files at ultra-fast speeds via built-in SD and Micro SD 4.0 card readers.

Universal Compatibility

Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).

Zero-Footprint Mounting Option and Security Cable Lock Slots

Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.

Free Kensington DockWorks™ Software and 3-Year Limited Warranty

Free DockWorks™ software for Windows users delivers the best connection, performance, and security from your Kensington dock. Backed by Kensington with a 3-year limited warranty.

Sustainability Attributes

The outer case of this docking station contains 100% post-consumer recycled (PCR) aluminum - and it is delivered in Forest Stewardship Council (FSC®) certified packaging.


Packaged Quantity: 1 Box
Package Type: Retail
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 3
Supported Resolutions:
  • 3840 x 2160
  • 6144 x 3456
  • 1920 x 1080
  • 7680 x 4320
  • Screen Mode Supported:
  • 4K @ 144Hz
  • 4K @ 60Hz
  • 6K @ 60Hz
  • 4K @ 240Hz
  • 4K @30Hz
  • FHD @ 120Hz
  • 8K @ 60Hz
  • 4K
  • 8K
  • 6K
  • Memory Card Reader: Yes
    Memory Card Supported:
  • SD
  • microSD
  • Device Supported:
  • Notebook
  • Monitor
  • Workstation
  • MacBook
  • Display
  • Headphone
  • Microphone
  • Network & Communication
    Ethernet Technology: 2.5 Gigabit Ethernet
    Interfaces/Ports
    Host Interface: Thunderbolt 5
    Total Number of USB Ports: 5
    Number of USB 3.2 Gen 1 Type-A Ports: 2
    Number of USB 3.2 Gen 2 Type-A Ports: 1
    Number of USB 3.2 Gen 2 Type-C Ports: 2
    Number of USB Type-C Ports: 2
    USB Type-C: Yes
    USB Type-C Detail: 1 x USB-C® 3.2 Gen2 10Gbps (up to 15V/2A), 1 x USB-C® 3.2 Gen2 10Gbps (up to 5V/1.5A)
    Number of USB Type-A Ports: 3
    USB Type-A: Yes
    Number of RJ-45 Ports: 1
    Network (RJ-45): Yes
    Headphone/Microphone Combo Port: Yes
    Number of HDMI Outputs: 2
    HDMI: Yes
    Thunderbolt 5: Yes
    Thunderbolt Ports Quantity: 2
    Number of Thunderbolt 5 Ports: 2
    USB Power Delivery: 140W
    Total Number of Ports: 13
    Software
    Operating System Supported:
  • Windows 11
  • macOS Sonoma 14.5
  • Power Description
    Maximum Power Supply Wattage: 180 W
    Physical Characteristics
    Product Color: Space Gray
    Form Factor: Desktop
    Height: 5.51" (140 mm)
    Width: 5.51" (140 mm)
    Depth: 1.57" (40 mm)
    Weight (Approximate): 1.95 lb (884.51 g)
    Miscellaneous
    Package Contents:
    • SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS
    • 1 x Thunderbolt 5 Cable
    • 1 x 180W Power Supply Unit
    • 1 x NA Power Cord
    • 1 x Quick Installation Guide
    • 1 x Compliance Sheet
    • 1 x Warranty Card
    • 1 x Welcome Card

    Kensington Security Slot: Yes
    Compatibility: A Thunderbolt™ 5 laptop running Windows 11 (23H2 or later) with USB-C® PD 3.1 EPR support for up to 140W (28V/5A) charging, MacBook M-Series models with Pro and Max chips
    Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Country of Origin: Vietnam
    Warranty
    Limited Warranty: 3 Year
