Description:
General Information
Manufacturer: Philips Electronics
Manufacturer Part Number: 86BDL5050D/00
Brand Name: Philips
Product Line: Signage Solutions
Product Series: 5000
Product Model: 86BDL5050D

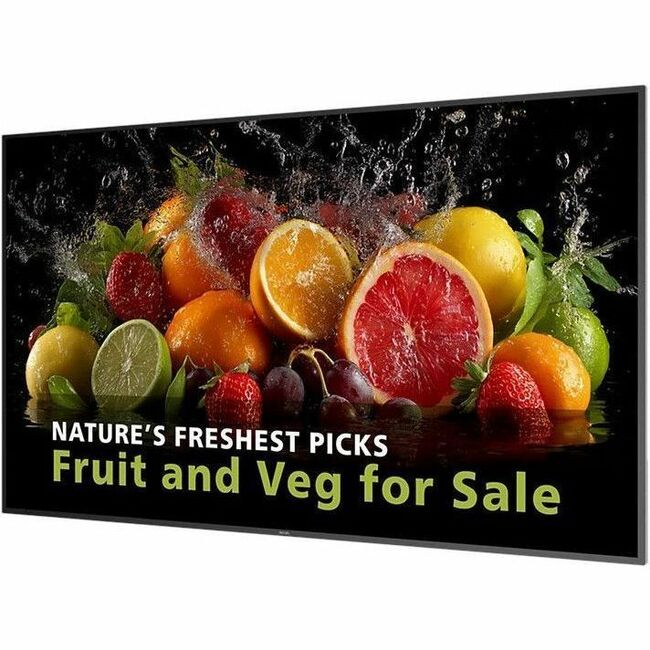

Product Name: Signage Solutions 5000 86BDL5050D Digital Signage Display
Marketing Information:
Philips Signage 5000 Series | Smart and modular - high performance 24/7
- 86"
- Powered by Android
- 600 cd/m2
24/7 - working for your content around the clock.
With 500 cd/m2 brightness for better visibility under bright lights or even in sunlight, the Philips Signage 5000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centres, food and beverage locations, and more.
Install in portrait or landscape orientations.
Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, plus a firm focus on sustainability, with reduced WEEE disposal.
Android 14 professional System on Chip.
Powered by Android 14, your Philips Signage 5050 display is designed on a professional platform with trusted connectivity and security built in. Optimised for native Android apps, it enables you to install web apps and software directly onto the display, eliminating the need for an external media player.
Integrated HTML5 Chromium-based browser.
Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait. Simply connect to the Internet via an RJ45 cable.
Philips Wave ready for remote device management.
Unlock the power, versatility and intelligence inside your Philips Signage 5000 displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules, saving you time, energy and environmental impact.
Product Type: Digital Signage Display
Technical Information
Bezel Width: 0.59" (14.90 mm)
Panel Technology: Advanced Super Dimension Switch ( ADS )
Operation Hours: 24 Hours/7 Days
On Screen Display (OSD) Languages: EnglishFrenchSpanishGermanPolishTurkishRussianItalianSimplified ChineseTraditional ChineseArabicJapaneseDanishDutchFinnishNorwegianPortugueseSwedishProcessor & Chipset
Processor Manufacturer: ARM
Processor Type: Cortex A72
2nd Processor Manufacturer: ARM
2nd Processor Type: Cortex A53
Memory
Standard Memory: 4 GB
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 85.60" (2174.24 mm)
Screen Size Class: 86" (2184.40 mm)
Display Screen Type: LCD
Response Time: 8 ms
Display Resolution: 3840 x 2160
Orientation: Landscape/Portrait
Graphics Controller Manufacturer: ARM
Graphics Controller Model: Mali G52 MC3
Aspect Ratio: 16:9
Video
Scan Format: 2160p
Native Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 500,000:1
Brightness: 600 cd/m²
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of USB 3.0 Ports: 2
Number of HDMI Inputs: 2
Number of DisplayPorts: 1
RS-232C Input: Yes
RS-232C Output: Yes
Digital Audio Optical Output: Yes
Number of Network (RJ-45) Ports: 1
Number of Audio Line Out: 1
Number of HDMI 2.0 Ports: 2
Software
Operating System: Android 14
Power Description
Input Voltage: 120 V AC230 V ACPhysical Characteristics
VESA Mount Standard: 600 x 400
Mount Type: Wall Mountable
Height: 43.31" (1100 mm)
Width: 75.94" (1929 mm)
Depth: 2.74" (69.50 mm)
Weight (Approximate): 106.51 lb (48310 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 140°F (60°C)
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Minimum Storage Humidity: 5%
Maximum Storage Humidity: 95%
Miscellaneous
Application/Usage: TransportationBus StopRetailFood Court
