Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: X870EGODLIKE MAX
Brand Name: MSI
Product Line: MEG
Product Model: X870E GODLIKE MAX

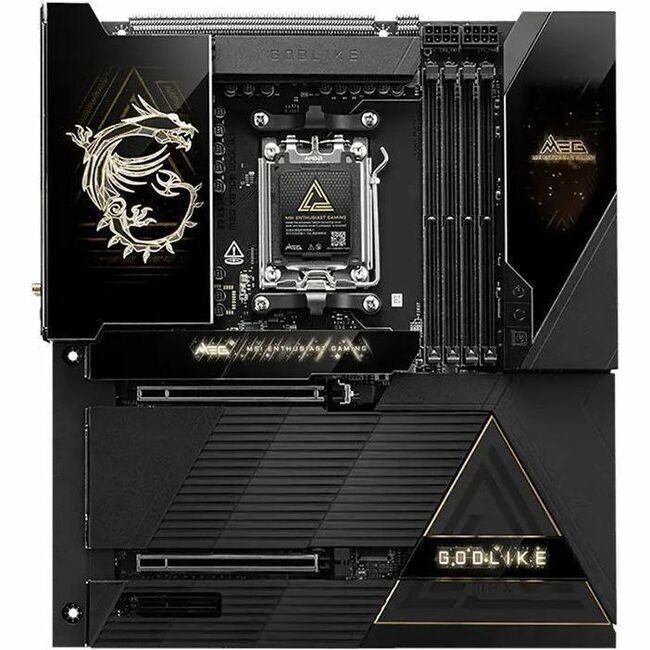

Product Name: MEG X870E GODLIKE MAX Gaming Desktop Motherboard
Marketing Information: Built for maximum performance and compatibility on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE MAX equips OC Engine, 64MB BIOS ROM, true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE MAX.
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: X870E
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7Ryzen 9Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 256 GB
Memory Speed Supported: 9200 MHz8400 MHz6400 MHz5600 MHz4800 MHzMemory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 4.0PCI Express 5.0Interfaces/Ports
Total Number of USB Ports: 15
S/PDIF: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 7
Total Number of Onboard USB Ports: 10
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: Extended ATX
Width: 12" (304.80 mm)
Depth: 10.91" (277 mm)
Miscellaneous
Package Contents:
- MEG X870E GODLIKE MAX Gaming Desktop Motherboard
- M.2 XPANDER-Z SLIDER (Gen 5)
- EZ Control Hub
- EZ Wi-Fi Antenna
- USB Drive
- 1-to-3 ARGB Gen 2 Extension Cable
- ARGB Extension Cable
- 1-to-3 EZ Conn-Cable (V2)
- EZ Link Cable
- EZ Control Hub SATA Power Cable
- M.2 XPANDER Card Fan Control Cable
- EZ Front Panel Cable
- 4 × SATA Cables
- 2 × Thermistor Cables
- M.2 XPANDER Card Thermal Pads
- EZ M.2 Clips II Remover
- EZ Control Hub Screw Sets
- Cable Stickers
- Quick Installation Guide
- European Union Regulatory Notice
Warranty
Limited Warranty: 3 Year
