Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: MAGB850GPMW
Brand Name: MSI
Product Line: MAG
Product Model: B850 GAMING PLUS MAX WIFI

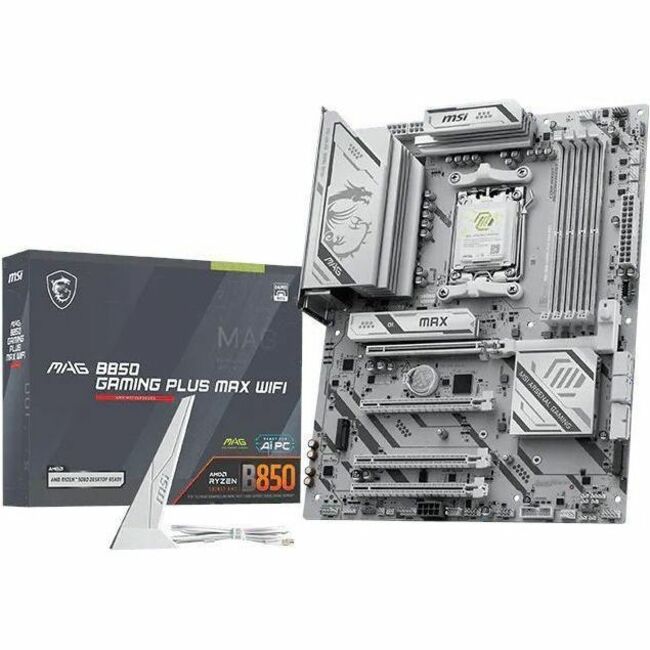

Product Name: MAG B850 GAMING PLUS MAX WIFI Gaming Desktop Motherboard
Marketing Information: MAG B850 GAMING PLUS MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with the latest Wi-Fi 7 solution, 5G LAN, USB 10Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B850
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 9Ryzen 7Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMCUDIMMMaximum Memory Supported: 256 GB
Memory Speed Supported: 8200 MHz6400 MHz6000 MHz5600 MHz4800 MHzMemory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
Total Number of Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 5.0PCI Express 4.0PCI Express 3.0Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 4
S/PDIF: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Miscellaneous
Package Contents:
- MAG B850 GAMING PLUS MAX WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- European Union Regulatory Notice
- 1 x SATA Cables
- EZ M.2 Clip II Remover
- EZ M.2 Clip II
- Cable Sticker
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (V1)
Compatibility:
- Socket: AM5, supporting AMD Ryzen 9000, 8000, and 7000 Series processors.
- Memory: 4x DDR5 slots, supporting speeds over 8200+ MT/s (OC), with a max capacity of 256GB.
- Expansion Slots: 1x PCIe 5.0 x16 slot for modern GPUs, along with PCIe 4.0 and 3.0 slots.
- Storage: 3x M.2 slots (Key-E) with 1x PCIe 5.0 x4 (from CPU), 1x PCIe 4.0 x4 (from CPU), and 1x PCIe 4.0 x4 (from Chipset). Supports 4x SATA 6G ports.
- Networking: Features 5G LAN (Realtek® 8126VB) and Wi-Fi 7.
- USB: Rear USB includes USB 20Gbps Type-C, 10Gbps Type-C, and various Type-A ports.
Warranty
Limited Warranty: 3 Year
