Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: X870EACEMAX
Brand Name: MSI
Product Line: MEG
Product Model: X870E ACE MAX

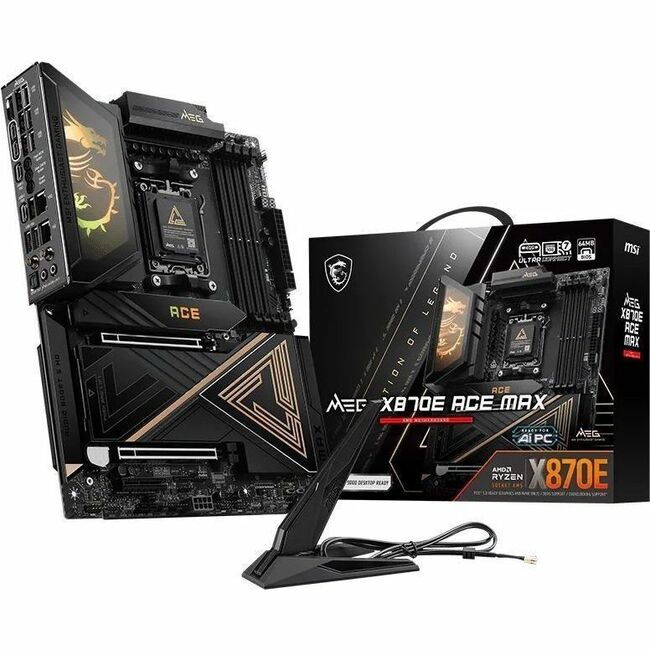

Product Name: MEG X870E ACE MAX Gaming Desktop Motherboard
Marketing Information: The MEG X870E ACE MAX boasts premium aesthetics with a sleek black metal nameplate and polished gold accents, symbolizing high-quality materials and construction that evoke a sense of prestige. Constructed around the latest AMD X870E chipset which supports AMD Ryzen 9000/8000/7000 series processors, featuring OC Engine, PCIe 5.0, 10G + 5G LAN, USB4, Wi-Fi 7, premium Frozr and EZ DIY design, setting a new standard for AMD X870E motherboards.
Package Type: Retail
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: X870E
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 9Ryzen 7Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 256 GB
Memory Speed Supported: 9000 MHz8400 MHz6400 MHz5600 MHz4800 MHzMemory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0PCI Express 5.0Interfaces/Ports
Total Number of USB Ports: 13
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 5
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Height: 11.50" (292.10 mm)
Width: 4" (101.60 mm)
Depth: 11.50" (292.10 mm)
Weight (Approximate): 8.22 lb (3728.53 g)
Miscellaneous
Package Contents:
- MEG X870E ACE MAX Gaming Desktop Motherboard
- EZ Wi-Fi Antenna
- Cable Sticker
- 4 x SATA Cables
- EZ Front Panel Cable
- 1 to 3 EZ Conn-Cable (V2)
- 1 to 3 ARGB Gen 2 Extension Cable
- 2 x Thermistor Cables
- USB Drive
- EZ M.2 Clip II Remover
- 3 x M.2 Screws
- Quick Installation Guide
- European Union Regulatory Notice
Warranty
Limited Warranty: 3 Year
