Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: MAGX870EGPMW
Brand Name: MSI
Product Line: MAG
Product Model: X870E GAMING PLUS MAX WIFI

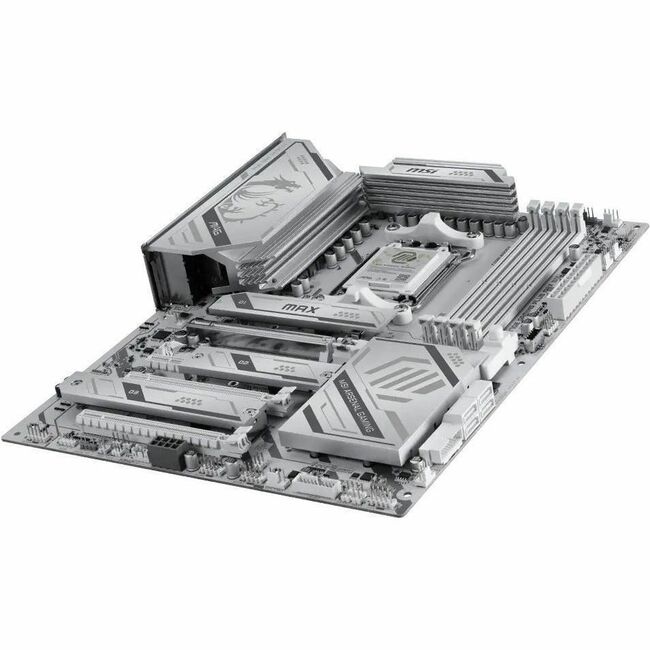

Product Name: MAG X870E GAMING PLUS MAX WIFI Gaming Desktop Motherboard
Marketing Information:
MAG X870E GAMING PLUS MAX WIFI
MAG X870E GAMING PLUS MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with full-speed Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
MAG MSI ARSENAL GAMING
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components
READY FOR Ai PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Al Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr Al Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
Al Boost
is an MSI exclusive feature. It overclocks NPU to improve higher Al performance.
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: X870E
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 9Ryzen 7Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 256 GB
Memory Speed Supported: 8200 MHz6400 MHz6000 MHz5600 MHz4800 MHzMemory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01105Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
Total Number of Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0PCI Express 3.0Interfaces/Ports
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 11
Number of Onboard USB 2.0 Ports: 6
Physical Characteristics
Form Factor: ATX
Height: 13.46" (341.88 mm)
Width: 2.76" (70.10 mm)
Weight (Approximate): 4.87 lb (2208.99 g)
Miscellaneous
Package Contents:
- MAG X870E GAMING PLUS MAX WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- European Union Regulatory Notice
- 2 x SATA Cables
- EZ M.2 Clip II Remover
- EZ M.2 Clip II
- Cable Sticker
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (V1)
- EZ Front Panel Cable
Warranty
Limited Warranty: 3 Year
