Description:
General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: ES206XPP-M2
Brand Name: Omada
Product Model: ES206XPP-M2

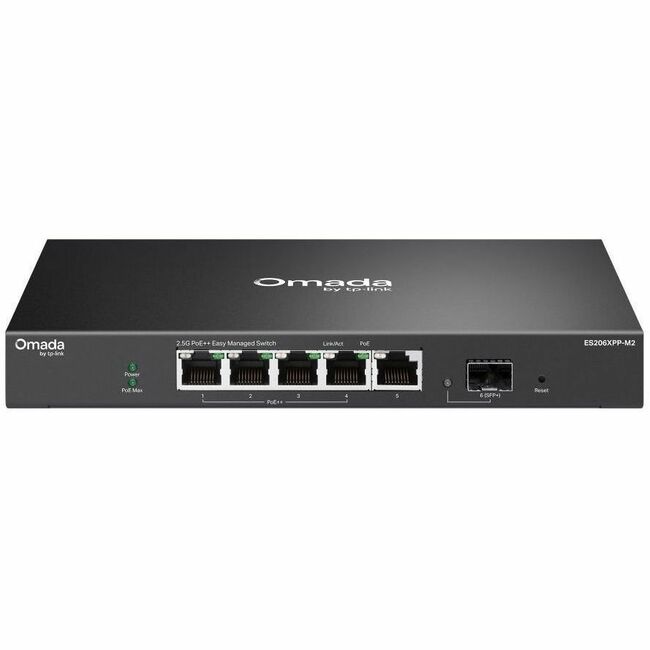

Product Name: ES206XPP-M2 Ethernet Switch
Marketing Information:
Omada 5-Port 2.5G+1-Port 10G Easy Managed Switch with 4-Port PoE++
ES206XPP-M2
5× 2.5G RJ45 Ports
1× SFP+ Slot
120W Total PoE Budget
Fanless Design for Silent Operation
Easy Centralized Management
Omada App
Traffic Separation
Traffic Prioritization
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
4× 2.5GPoE++RJ45 Ports
Up to90Wper Port
Total120WPoE Budget
Compatible with802.3af/at/btPoE and non-PoE devices
Access Point
Gaming Consoles
4k Video 8K/4K Video
Computer
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
2.5G WiFi7/6 APs
2.5G Gaming Computer
2.5G NAS/Server
PoE Lighting
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Cost-Performance Solution | Looking for free, worry-free cloud management for life?
Omada Central Essentials
Lifetime Free Cloud without Additional Fees
On-site work eating up time and resources?
Reduce Maintenance Costs
Manage and Maintain from Anywhere
Multiple Application Scenarios | Wi-Fi Coverage
Works with Wi-Fi 6/7 Access Points
LAN Party
Works with Gaming Consoles and TVs
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Packaged Quantity: 1
Product Type: Ethernet Switch
Technical Information
Features: Plug and PlayRemote/Cloud ManagementVirtual LAN (VLAN)Quality of Service (QoS)IGMP SnoopingFanlessZero-Touch Provisioning (ZTP)Link AggregationFlow ControlLoopback DetectionPort MirroringCable DiagnosticAuto-negotiationBroadcast Storm ControlMulticast Storm ControlUnicast Storm ControlLoop ProtectionInterfaces/Ports
Total Number of Network Ports: 5
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 1 x 2.5 Gigabit Ethernet Network4 x 2.5 Gigabit Ethernet PoE++1 x 10 Gigabit Ethernet Expansion SlotMedia & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: 2.5 Gigabit Ethernet10 Gigabit EthernetNetwork Technology: 2.5GBase-T10GBase-XMaximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP+
Number of SFP+ Slots: 1
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3afIEEE 802.3atIEEE 802.3btIEEE 802.3xIEEE 802.1abManagement & Protocols
Manageable: Yes
Switch Management Type: Easy Managed
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 120 W
Input Voltage: 120 V AC230 V ACPower Source: ACPower AdapterPhysical Characteristics
Product Material: Metal
Form Factor: DesktopWall MountableHeight: 1" (25.40 mm)
Width: 8.20" (208.28 mm)
Depth: 5" (127 mm)
Weight (Approximate): 1.48 lb (671.32 g)
Miscellaneous
Package Contents:
- ES206XPP-M2 Ethernet Switch
- Power Adapter
- Power Cord
- Mounting Feet
- Installation Guide
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
