Description:
General Information
Manufacturer: StarTech.com
Manufacturer Part Number: 201N-USBC-DOCK
Brand Name: StarTech.com

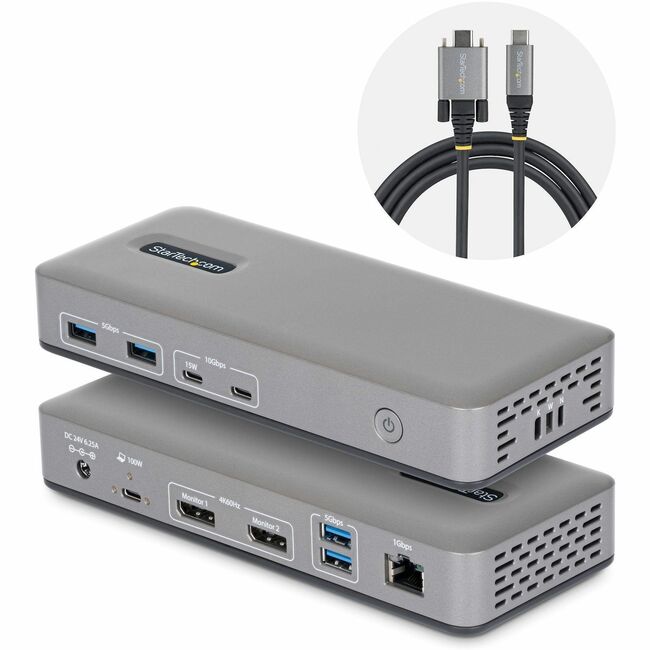

Product Name: 201N-USBC-DOCK
Marketing Information:
Connect up to two 4K 60 Hz DisplayPort displays through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.
Uncompressed Video Over USB-C
Connect up to two 4K 60Hz DisplayPort displays through a single USB Type-C port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression
Driverless Deployment
Features plug-and-play functionality on Windows with no drivers or software required. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.
Flexible, High-Speed I/O
This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.
Mounting and Security
This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).
More from the Manufacturer
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 2
Supported Resolutions: 3840 x 2160
Screen Mode Supported: 4K @ 60Hz
Management Features: PXE Boot
Device Supported: NotebookComputerMonitorNetwork & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB 3.2 (Gen 2) Type C
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-C Ports: 2
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps), 1 x USB 3.2 Type-C (24 Pin, Gen 2, 10Gbps, 15W Power)
Number of USB Type-A Ports: 4
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPorts: 2
DisplayPort: Yes
USB Power Delivery: 100W
Software
Operating System Supported: Windows 11Windows 10Ubuntu 24.04Power Description
Maximum Power Supply Wattage: 150 W
Physical Characteristics
Product Color: Space Gray
Height: 1.10" (27.94 mm)
Width: 3.10" (78.74 mm)
Weight (Approximate): 9.60 oz (272.16 g)
Miscellaneous
Package Contents:
- 201N-USBC-DOCK
- 1 x 3.3ft (1m) Host Cable
- 1 x Universal Power Adapter (North America)
- 1 x Product Documentation
Kensington Security Slot: Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS) Warranty
Limited Warranty: 3 Year
