Description:
General Information
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: OL3KRM
Brand Name: CyberPower
Product Line: Essential Online
Product Model: OL3KRM

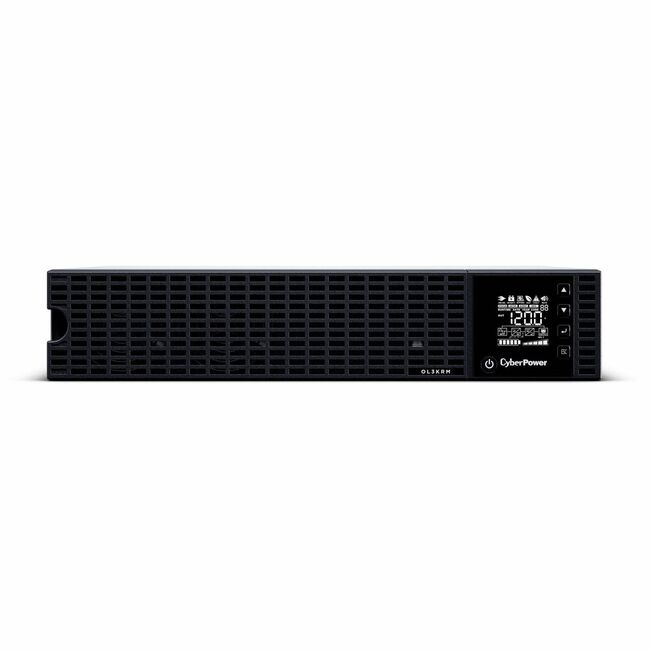

Product Name: Essential Online OL3KRM 3000VA Rack-mountable UPS
Marketing Information:
CyberPower Essential Online UPS. Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower Essential Online OL3KRM is a rack mounted UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL3KRM offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
More from the Manufacturer
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 6 x NEMA 5-20R
Overload Protection: Yes
Cord Length: 10 ft (3.05 m)
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: ECO Mode Efficiency >96%
Application/Usage: Mission Critical EquipmentEquipmentGeneratorBusinessEnterpriseSurge Suppression: Yes
Features: Cold Start FunctionBuilt-in Bypass SwitchAudible AlarmPower Description
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.40 kW
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 125 V AC
Output Voltage: 100 V AC110 V AC115 V AC120 V AC125 V ACInput Frequency: 50 Hz60 HzOutput Frequency: 50 Hz60 HzWaveform Type: Sine Wave
Surge Energy Rating: 710 J
Circuit Breaker: Yes
Input Power Factor: 0.99
Output Power Factor: 0.8
Display & Graphics
Display: LCD
Management
Network Management: Dry ContactSNMP/HTTP Remote MonitoringAlarm: Battery Mode
Controls/Indicators
Status Indicators: Power On (White)
Interfaces/Ports
Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 4
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 2.20 Minute
Backup/Run Time (Half Load): 7.50 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 9843 ft (3000146.40 mm)
Maximum Storage Elevation: 49213 ft (15000122.40 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 0.9%
Storage Relative Humidity: 0% - 1%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 20.3 dB(A)
Thermal Dissipation: 217 BTU/h
Physical Characteristics
Product Color: Silver
Height: 3.41" (86.61 mm)
Width: 17.05" (433.07 mm)
Depth: 18.31" (465.07 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 48.28 lb (21899.44 g)
Miscellaneous
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
