Description:
General Information
Manufacturer: Dell Technologies
Manufacturer Part Number: DELL-WD25TB5
Brand Name: Dell
Product Series: Pro
Product Model: WD25TB5

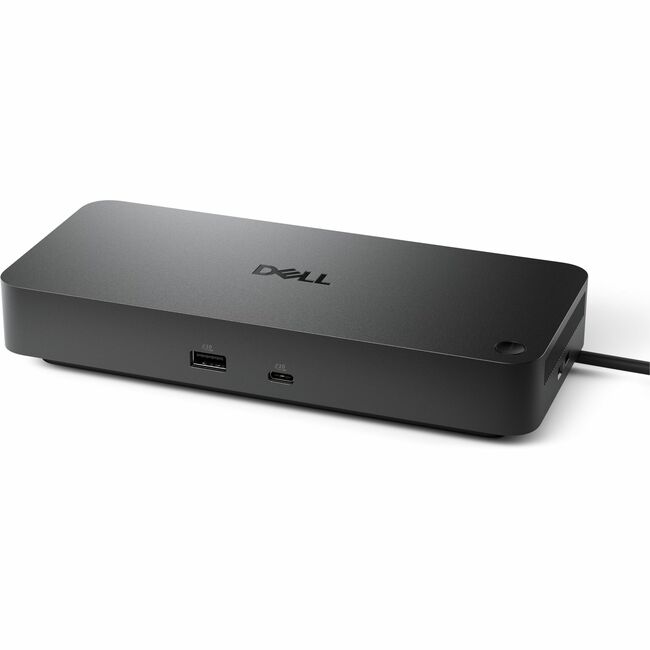

Product Name: Pro Thunderbolt 5 Dock - WD25TB5
Marketing Information:
Power AI productivity
Maximize AI PC productivity with the industry's most powerful Thunderbolt 5 dock and seamlessly run Gen AI tools across up to four 4K 120Hz displays. Featuring Extended Power Range, deliver up to 300W over a single USB-C cable to power even the highest-performance AI PCs, while modern ports ensure broad connectivity.
Accelerate manageability
Delivering ultimate IT efficiency across the modern workspace.
Improved manageability
Manage your dock through the Dell Device Management Console, using the Dell Display and Peripheral Manager along with the Dell Device Management Agent installed on your PC.
Simplify firmware updates
Reduce IT complexity by deploying a single firmware file across workspaces. Minimize end-user disruption with silent firmware updates, executed upon dock disconnection.
Unlock out-of-band management on select Intel® vPro® PCs with Intel® Active Management Technology (Intel® AMT) over
Work with confidence
Enhance your docking experience across brands with universally compatible features including MAC Address Pass-Through and Power Button Sync.
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable[3] that can be routed left or right.
Improved sustainability
The new generation of Dell Pro Docks reflect a commitment to sustainable design innovation to reduce environmental impact. The WD25TB5 is built with sustainable materials and packaged with at least 65% post-recycled content (PCR) plastic and 100% recycled or renewable packaging.
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Number of Displays Supported: 4
Supported Resolutions: 3840 x 21605120 x 21602560 x 14403440 x 14407680 x 43206144 x 3456Screen Mode Supported: QHD @ 60HzWQHD @ 60Hz4K @ 60Hz5K @ 60Hz6K @ 60Hz8K @ 60Hz4K @ 120HzManagement Features: Intel AMT over Thunderbolt with select Intel vPro PCsMAC Address Pass-throughPXE BootDock Power Button SyncWake-on-LANWLAN to LAN SwitchKernel Direct Memory Access (DMA) ProtectionDell Command Update (DCU)Port DisablementHost PC based firmware updateFirmware update on disconnectDevice Supported: NotebookDesktop PCNetwork & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 5
Total Number of USB Ports: 6
Number of USB 3.2 Gen 2 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-C Ports: 1
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C Multi-function DisplayPort (7.5W)
Number of USB Type-A Ports: 4
USB Type-A: Yes
Network (RJ-45): Yes
Number of DisplayPorts: 2
DisplayPort: Yes
DisplayPort Version: 2.1
Number of HDMI Ports: 1
HDMI: Yes
Thunderbolt 5: Yes
Thunderbolt Ports Quantity: 2
Number of Thunderbolt 5 Ports: 2
Total Number of Ports: 12
Software
Operating System Supported: Windows 10Windows 11Ubuntu 24.04Red Hat Enterprise Linux 9.7ChromeOS 141macOSPower Description
Maximum Power Supply Wattage: 330 W
Physical Characteristics
Height: 1.39" (35.31 mm)
Width: 8.07" (204.98 mm)
Depth: 3.54" (89.92 mm)
Weight (Approximate): 1.37 lb (621.42 g)
Miscellaneous
Package Contents:
- Pro Thunderbolt 5 Dock - WD25TB5
- Power Adapter
- Power Cord
- Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
Kensington Security Slot: Yes
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
- 3-Year Limited Hardware Warranty with Advanced Exchange
- Additional 4- & 5-year warranty optional
