Description:
General Information
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: OL2K2RTHD
Brand Name: CyberPower
Product Series: Smart App Online UPS
Product Model: OL2K2RTHD

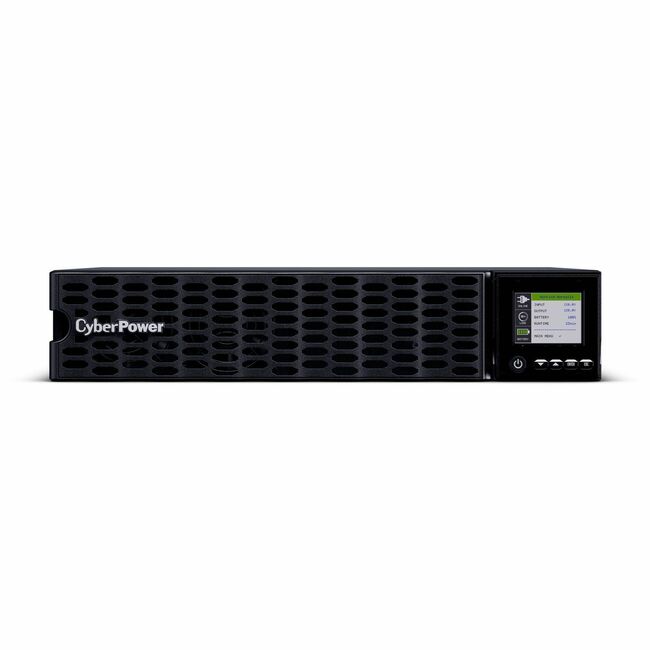

Product Name: Smart App Online UPS OL2K2RTHD 2200VA Rack/Tower UPS
Marketing Information:
The OL2K2RTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL2K2RTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.82. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.
The optional BP36VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year warranty (including batteries) and a $400,000 Connected Equipment Guarantee.
More from the Manufacturer
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20RNEMA L5-20RReceptacle Detail: 6 x NEMA 5-20R1 x NEMA L5-20ROverload Protection: Yes
Cord Length: 10 ft (3.05 m)
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Energy Saving: ECO Mode Efficiency >96%
Surge Suppression: Yes
Features: Built-in Bypass SwitchAudible AlarmCold Start FunctionPower Description
Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.80 kW
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 125 V AC60 V AC - 69 V ACOutput Voltage: 100 V AC110 V AC115 V AC120 V AC125 V ACInput Frequency: 40 Hz70 HzOutput Frequency: 50 Hz60 HzWaveform Type: Sine Wave
Surge Energy Rating: 710 J
Circuit Breaker: Yes
Input Power Factor: 0.99
Output Power Factor: 0.82
Display & Graphics
Display: LCD
Management
Network Management: Dry ContactSNMP/HTTP Remote MonitoringAlarm: Battery Mode
Controls/Indicators
Status Indicators:
LED Indicators:
Power On (White)
Interfaces/Ports
Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 3
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 3.10 Minute
Backup/Run Time (Half Load): 10.30 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 9843 ft (3000146.40 mm)
Maximum Storage Elevation: 49213 ft (15000122.40 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity: 0% - 95%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 57.1 dB(A)
Thermal Dissipation: 497 BTU/h
Physical Characteristics
Product Color: Black
Height: 3.39" (86 mm)
Width: 17.05" (433 mm)
Depth: 14.96" (380 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 38.58 lb (17499.59 g)
Miscellaneous
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
Three-year warranty (including batteries)
