Description:
General Information
Manufacturer: Sharp Electronics
Manufacturer Part Number: PN-P506
Brand Name: Sharp
Product Line: MultiSync
Product Series: P6
Product Model: PN-P506

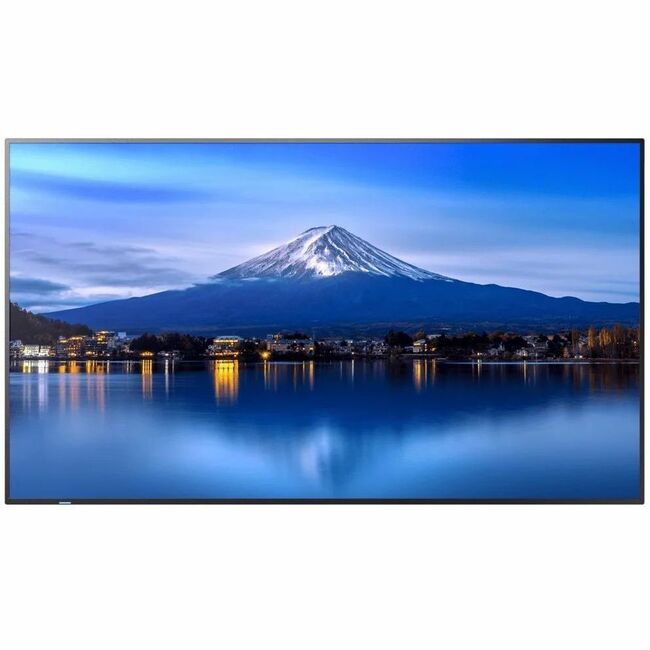

Product Name: LCD 50" Professional Large Format Display
Marketing Information:
Precision performance for critical applications
When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards. Building on NEC's trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats.
Benefits
- Enhanced imaging precision - when brand consistency and corporate identity are important, NEC's SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Unhindered readability - a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured - 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Mission-critical performance - with 700 cd/m² brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
- Trusted integration - full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.
Product Type: Digital Signage Display
Technical Information
Bezel Width (Top): 0.43" (10.90 mm)
Bezel Width (Bottom): 0.55" (13.90 mm)
Bezel Width (Left): 0.43" (10.90 mm)
Bezel Width (Right): 0.43" (10.90 mm)
Ingress Protection (IP) Rating: IP5XIP2XPanel Technology: Vertical Alignment (VA)
Operation Hours: 24 Hours/7 Days
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 50" (1270 mm)
Screen Size Class: 49.50" (1257.30 mm)
Display Screen Type: LCD
Response Time: 8 ms
Display Resolution: 3840 x 2160
Orientation: Face-up/Landscape/Portrait/Face-down
Backlight Technology: Direct LED
Aspect Ratio: 16:9
Video
Scan Format: 2160p
Native Contrast Ratio: 4,000:1
Brightness: 700 cd/m²
Color Gamut: 86% DCI
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of HDMI Inputs: 2
Number of HDMI Outputs: 1
Number of DisplayPorts: 2
DisplayPort Output: Yes
RS-232C Input: Yes
Digital Audio Optical Output: Yes
Number of Network (RJ-45) Ports: 2
Number of Audio Line Out: 1
Number of HDMI 2.0 Ports: 2
Number of DisplayPort Outputs: 1
Power Description
Input Voltage: 120 V AC230 V ACPhysical Characteristics
Color Family: Black
Product Color: Black
Bezel Color: Black
VESA Mount Standard: 300 x 300
Mount Type: Wall MountableTable MountHeight: 25.40" (645.20 mm)
Width: 44.16" (1121.60 mm)
Depth: 2.62" (66.50 mm)
Weight (Approximate): 39.68 lb (18000 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 140°F (60°C)
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Minimum Storage Humidity: 10%
Maximum Storage Humidity: 80%
Miscellaneous
Application/Usage: CommercialRestaurantControl RoomRetailHealthcareCorporateEnergy Star: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Restriction of Hazardous Substances (RoHS)Energy Efficiency Certification: ENERGY STAR 8.0
