Description:
General Information
Manufacturer: Reolink Digital Technology Co., Ltd.
Manufacturer Part Number: RP-PCB8M
Brand Name: Reolink
Product Line: Professional
Product Model: RP-PCB8M

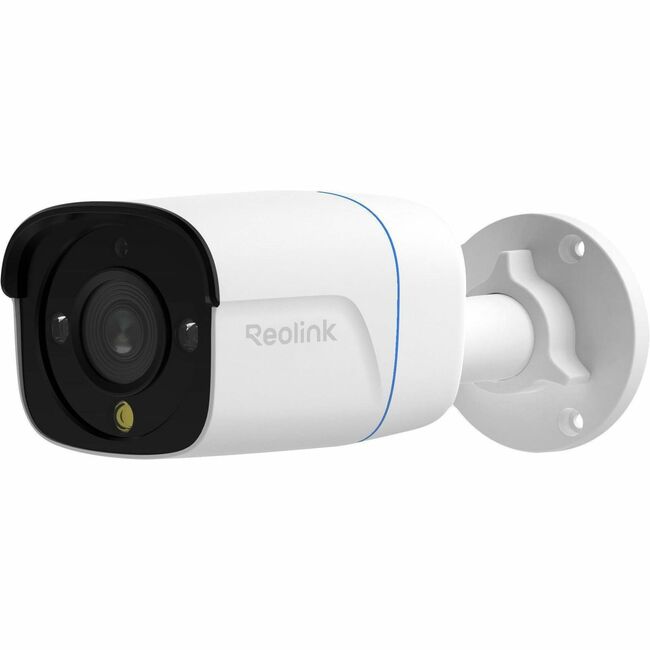

Product Name: Smart 4K 125° View PoE Bullet Security Camera
Marketing Information:
Precision Imaging with 4K Clarity
Capture ultra-high definition video at 25 FPS for smooth, reliable monitoring. With multiple lighting modes and F1.6 large aperture, enjoy optimised visibility in color night vision even in low light environments.
Perimeter Protection
Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, this pro-grade camera delivers precise 24/7 protection for critical areas, enabling rapid response to security threats
Smart Event Detection(Beta)
Send instant alerts on object forgotten or removed from key areas, ensuring timely action and loss prevention
Secure Storage For Every Need
Trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.
microSD Card
Conveniently store your recordings locally on a microSD card up to 512GB
Remote Live Viewing
Stay connected to your home or business with real-time remote viewing via the VMS system, whether you're in office or on the go.
Alarm Management
Supports diverse detection, including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm-with instant pop-up notifications via VMS for prompt response.
Account Management
Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.
Packaged Quantity: 1
Product Type: Network Camera
Technical Information
HD Recording: Yes
Recording Formats: 4K
Night Vision: Yes
Night Vision Distance: 98.43 ft (30 m)
Night Vision Type: Infrared/Color
Number of IR LEDs: 2
Virtual Assistant Supported: Google Assistant
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/2.7"
Color Supported: Color
Field of View: Horizontal: 105° Vertical: 56° Diagonal: 125°
Effective Camera Resolution: 8 Megapixel
Video
Video Formats: H.265H.264Maximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 25 fps
Audio
Audio Support: Yes
Lens
Lens Type: Fixed
Maximum Focal Length: 2.8 mm (0.11")
Lens Included: Yes
Maximum Aperture: f/1.6
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: HTTPSSSLTCP/IPUDPHTTPIPv4UPnPRTSPSMTPNTPDHCPDNSDDNSFTPONVIFStorage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 12 V DC48 V DCPower Source Type: PoEDCPhysical Characteristics
Product Material: Metal
Mount Type: Wall MountCeiling MountDurability: Water ProofWeather ProofWater ResistantDust ResistantWeight (Approximate): 15.96 oz (452.40 g)
Environmental Conditions
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 131°F (55°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 90%
Miscellaneous
Features:
Factory Reset ButtonBuilt-in MicrophoneBuilt-in SpeakerMotion DetectionHuman DetectionVehicle DetectionCross Line DetectionMotion TriggeredIndoor/Outdoor: Outdoor
Package Contents:
- Smart 4K 125° View PoE Bullet Security Camera
- 1 x Ethernet Cable
- 1 x Operational Instruction
Ingress Protection Rating: IP67
Warranty
Limited Warranty: 2 Year
