Description:
General Information
Manufacturer: Reolink Digital Technology Co., Ltd.
Manufacturer Part Number: RP-PCB12M
Brand Name: Reolink
Product Line: Professional
Product Model: RP-PCB12M

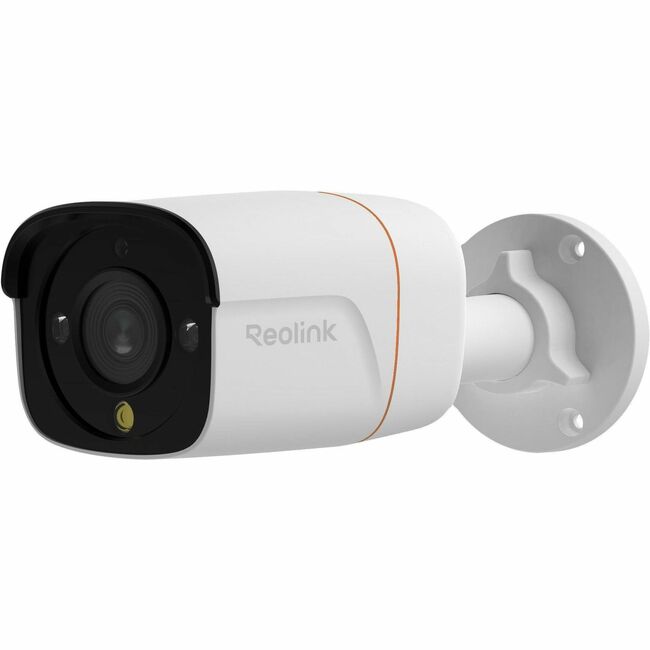

Product Name: 12MP Ultra HD PoE Camera with Spotlights
Marketing Information:
2MP Clarity, Even in the Dark
Capture the smallest details with ultra high-definition 12MP resolution. Working in tandem, AI ISP technology coupled with the F1.6 large aperture lens ensures exceptional night vision, while spotlights bring full-color clarity to nighttime footage.
Secure Storage For Every Need
Trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.
microSD Card
Conveniently store your recordings locally on a microSD card up to 512GB
Remote Live Viewing
Stay connected to your home or business with real-time remote viewing via the VMS system, whether you're in office or on the go.
Alarm Management
Supports diverse detection, including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm-with instant pop-up notifications via VMS for prompt response
Device Management
Group cameras by project or area for efficient device managment and status monitoring. Check the real-time connectivity status and battery level for uninterrupted surveillance.
Account Management
Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.
All-Weather Performance
All-metal housing and IP67 rating, ensuring durable operation from -30°C to 55°C -adapting seamlessly to residential and commercial environments.
Packaged Quantity: 1
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 98.43 ft (30 m)
Night Vision Type: Infrared/Color
Number of IR LEDs: 2
Virtual Assistant Supported: Google Assistant
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/2.49"
Color Supported: Color
Field of View: Horizontal: 100.4° Vertical: 50.6° Diagonal: 123°
Effective Camera Resolution: 12 Megapixel
Video
Video Formats: H.265H.264Maximum Video Resolution: 4512 x 2512
Maximum Frame Rate: 25 fps
Audio
Audio Support: Yes
Lens
Lens Type: Fixed
Maximum Focal Length: 4 mm (0.16")
Lens Included: Yes
Maximum Aperture: f/1.6
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: HTTPSSSLTCP/IPUDPHTTPIPv4UPnPRTSPSMTPNTPDHCPDNSDDNSFTPONVIFStorage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 12 V DC48 V DCPower Source Type: PoEDCPhysical Characteristics
Product Material: Metal
Mount Type: Wall MountCeiling MountDurability: Water ProofWeather ProofDust ResistantWater ResistantWeight (Approximate): 15.96 oz (452.40 g)
Environmental Conditions
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 131°F (55°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 90%
Miscellaneous
Features:
Factory Reset ButtonBuilt-in MicrophoneBuilt-in SpeakerMotion DetectionHuman DetectionVehicle DetectionCross Line DetectionMotion TriggeredIndoor/Outdoor: Outdoor
Package Contents:
- 12MP Ultra HD PoE Camera with Spotlights
- 1 x Ethernet Cable
- 1 x Quick Start Guide
Ingress Protection Rating: IP67
Warranty
Limited Warranty: 2 Year
