Description:
General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: SG2206MP
Brand Name: Omada
Product Model: SG2206MP

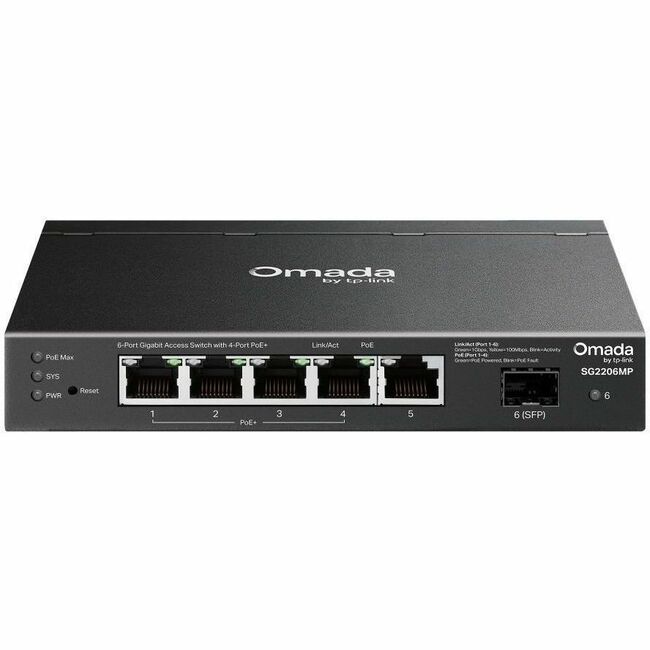

Product Name: Access 6-Port Gigabit Switch with 4-Port PoE+
Marketing Information:
OmadaAccess6-Port Gigabit PoE+ Switch
5× Gigabit Ports (4× PoE+), 1× SFP Slot
63W Total PoE Budget
Fanless Design for Silent Operation
Centralized Management
Traffic Separation
Access Control
Static Routing Omada App
Power over Ethernet, Flexible Network Deployment
4× Gigabit PoE+ RJ45 Ports
Up to 30W per PoE+ Port
Total 63W PoE Power Budget
Compatible with 802.3af/at PoE and non-PoE devices
- Access Point
- IPPhone
- IPCamera
- Gateway/AggregationSwitch
Software Defined Networking (SDN) with Cloud Access
Multiple Application Scenarios
Wi-Fi Coverage Works with Access Points
Surveillance Works with IP Cameras
Conference Call Works with IP Phones
Wired Connections Works with Non-PoE Devices such as PCs and Printers
Product Type: Ethernet Switch
Technical Information
Features: Remote/Cloud ManagementFanlessReset ButtonBroadcast Storm ControlDHCP RelayRemote Monitoring (RMON)DHCP SnoopingEnergy EfficientStrict Priority Queuing (SPQ)Support Dual ImageInterfaces/Ports
Total Number of Network Ports: 5
Network (RJ-45): Yes
Port/Expansion Slot Details: 4 × 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port1 × 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port1 x Gigabit Ethernet SFP Expansion SlotMedia & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T1000Base-XMaximum Data Transfer Rate: 128 MB/s
I/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3xIEEE 802.1abIEEE 802.1sIEEE 802.1DIEEE 802.1wIEEE 802.1QIEEE 802.1xIEEE 802.1azIEEE 802.3afIEEE 802.3atManagement & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 63 W
Power Source: Power AdapterDCPower Consumption: 73.70 W
Physical Characteristics
Product Material: Metal
Form Factor: DesktopWall MountableHeight: 1" (25.40 mm)
Width: 6.20" (157.48 mm)
Depth: 4" (101.60 mm)
0 items
):
$134.95
