Product ID: 1087103588

Category:

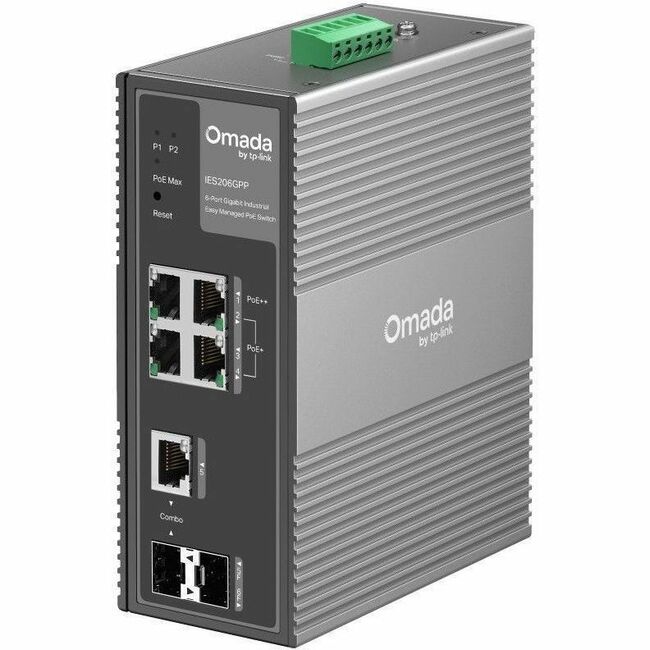

Omada IES206GPP Ethernet Switch


Omada IES206GPP Ethernet Switch

Price (CDN): $246.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $246.95

Quantity:




Description:
General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: IES206GPP
Brand Name: Omada
Product Name: IES206GPP Ethernet Switch
Marketing Information:

Omada Industrial 6-Port Gigabit Easy Managed PoE++ Switch

IES206GPP

6× Gigabit Ports (1× PoE++, 3× PoE+, 1× RJ45/SFP Combo, 1× SFP)

120W Total PoE Budget

-40°C to 75°C Operating Temperature

12~57VDC 1+1 Redundant Power Input

Industrial-Grade IP40 Aluminum Casing

Abundant Functions for CCTV Networking

Easy Centralized Management

DIN-Rail & Wall Mounting

Industrial-Grade Protection Built for Harsh Environments

-40°C to 75°C Operating Temperature

6kV Lightning Protection

Industrial-Grade IP40 Aluminum Casing

Enhanced Networking Stability and Security | 1+1 Redundant Power Input

Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails.

Real-Time Fault Alarm

Connected to an external alarm, the switch outputs an alarm signal promptly if a port is disconnected or power input is abnormal.

Gigabit PoE++ Ports for Reliable High-Power Device Support

  • 1× Gigabit PoE++ RJ45 Ports
  • 3× Gigabit PoE+ RJ45 Ports
  • Budget up to 60W per PoE++ Port
  • Total 120W PoE Power

Easy Operation and Maintenance with Omada's Free Cloud Management

Easy to Use with Plug-and-Play Design and Simple Configuration

Free and Easy Centralized Cloud Management via Omada Central Essentials

Access Logs and Receive Alert Notifications at Any Time

Easily Configure Surveillance Features Like 24/7 Camera Monitoring & Automatic Recovery

Flexible Deployment Options

DIN-rail

Wall-mount

Diverse Industry Applications

  • Surveillance
  • Industrial Automation
  • Energy
  • Smart Buildings

Product Type: Ethernet Switch
Technical Information
Features:
  • Fanless
  • Link Aggregation
  • Loopback Detection
  • Port Mirroring
  • Zero-Touch Provisioning (ZTP)
  • IP40
  • Plug and Play
  • Broadcast Storm Control
  • Multicast Storm Control
  • Unicast Storm Control
  • Interfaces/Ports
    Total Number of Network Ports: 6
    Network (RJ-45): Yes
    Port/Expansion Slot Details:
  • 3 x Gigabit Ethernet PoE+
  • 1 x Gigabit Ethernet PoE++
  • 1 x Gigabit Ethernet Expansion Slot
  • 1 × Gigabit Ethernet TP/SFP Combo
  • Media & Performance
    Media Type Supported:
  • Twisted Pair
  • Optical Fiber
  • Ethernet Technology: Gigabit Ethernet
    Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
  • Maximum Data Transfer Rate: 128 MB/s
    I/O Expansions
    Total Number of Expansion Slots: 2
    Expansion Slot Type: SFP
    Shared SFP Slot: Yes
    Number of SFP Slots: 2
    Network & Communication
    Layer Supported: 2
    Networking Standards:
  • IEEE 802.1p
  • IEEE 802.3x
  • IEEE 802.1Q
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.3bt
  • IEEE 802.3af
  • IEEE 802.3at
  • Management & Protocols
    Manageable: Yes
    Switch Management Type: Easy Managed
    Power Description
    PoE (RJ-45) Port: Yes
    PoE Budget: 120 W
    Input Voltage:
  • 12 V DC
  • 57 V DC
  • Power Source: DC
    Physical Characteristics
    Product Material: Aluminum
    Form Factor:
  • DIN Rail Mountable
  • Wall Mountable
  • Desktop
  • Height: 2.40" (60.96 mm)
    Width: 6.10" (154.94 mm)
    Depth: 4.70" (119.38 mm)
    Miscellaneous
    Package Contents:
    • IES206GPP Ethernet Switch
    • DIN-Rail Mounting Bracket
    • Wall-Mounting Plates
    • Installation Guide

    Environmental Compliance: Restriction of Hazardous Substances (RoHS)
