General Information

---

Manufacturer: Kensington Computer Products Group
Manufacturer Part Number: K32803NA
Brand Name: Kensington
Product Model: SD3220U3

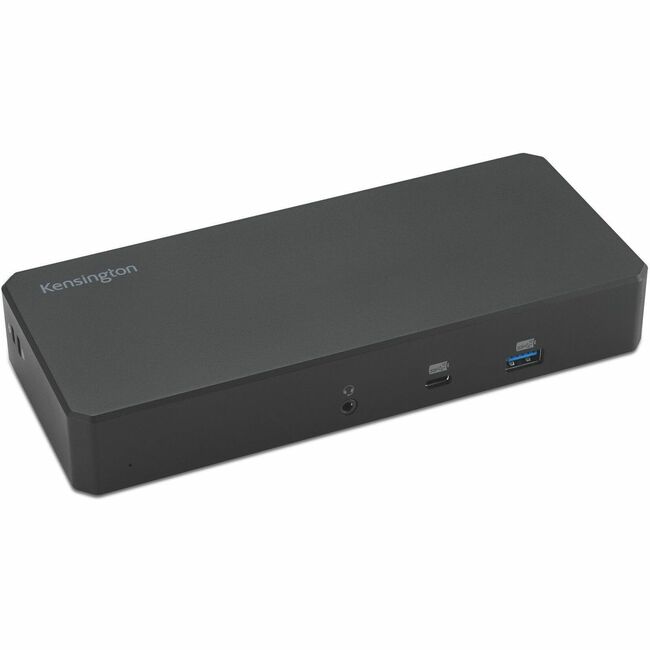

Product Name: SD3220U3 EQ USB-C 10Gbps Triple Video Driverless Dock 100W PD - DP/HDMI -Windows
Marketing Information: IT buyers often struggle with managing different docks for various laptops, missing out on the advantages of a unified solution that supports multiple external monitors. The SD3220U3 EQ USB-C® 10Gbps Triple Video Driverless Dock addresses these issues with a hassle-free solution. Compatible with Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® Alt Mode Windows laptops, it provides all the essential ports needed for professional workflows, including support for up to three external 4K monitors, convenient front and back high-speed USB-A and USB-C® ports, laptop and phone charging, audio output, and Ethernet connectivity.
Packaged Quantity: 1
Product Type: Docking Station

Technical Information

---

Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 3
Supported Resolutions:

7680 x 4320

3840 x 2160

2048 x 1080

1920 x 1080

1600 x 900

Screen Mode Supported:

8K @ 30Hz

4K @ 60Hz

4K @30Hz

2K @ 60Hz

FHD @ 60Hz

HD+

Memory Card Reader: No
Device Supported:

Notebook

Monitor

Smartphone

Network & Communication

---

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

---

Host Interface: USB 3.2 (Gen 2) Type C
Total Number of USB Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-C Ports: 2
Number of USB Type-C Ports: 1
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C® 3.2 Gen2 (5V/1.5A) BC 1.2, 1 x USB-C® Host Docking Connector with up to 100W Dynamic Power Delivery
Number of USB Type-A Ports: 4
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPorts: 2
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
USB Power Delivery: 100W

Software

---

Operating System Supported:

Windows 10

Windows 11

Power Description

---

Maximum Power Supply Wattage: 135 W

Physical Characteristics

---

Product Color: Black
Height: 1.18" (29.97 mm)
Width: 3.34" (84.84 mm)
Weight (Approximate): 8.96 oz (254.01 g)

Miscellaneous

---

Package Contents:

SD3220U3 EQ USB-C 10Gbps Triple Video Driverless Dock

1 x USB-C 3.2 Gen2 passive Cable

1 x 135W Power Supply Unit

1 x NA Power Cord

1 x Quick Installation Guide

1 x Compliance Sheet

1 x Warranty Card

1 x Welcome Card

Kensington Security Slot: Yes
Compatibility: USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to triple 4K
TAA Compliant: Yes
Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country of Origin: Taiwan

Warranty

---

Limited Warranty: 3 Year
