Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02981-001
Brand Name: AXIS
Product Series: P32
Product Model: P3285-LVE

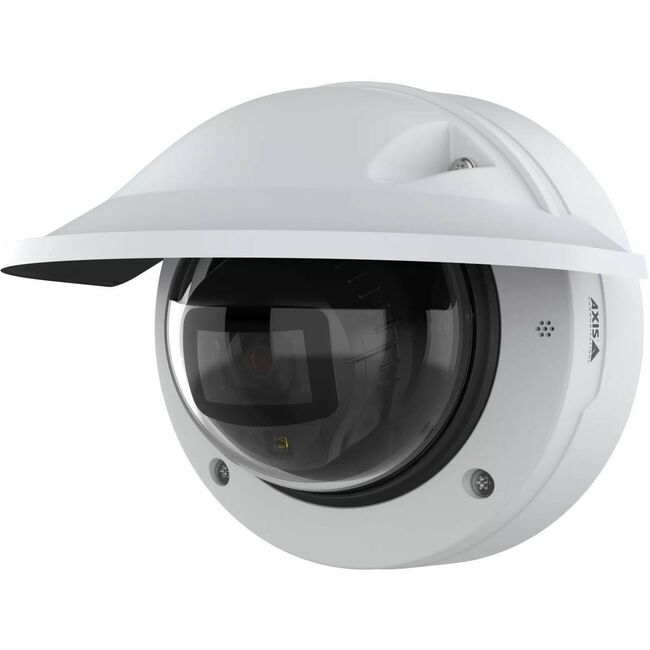

Product Name: P3285-LVE Dome Camera
Marketing Information:
Outdoor 2 MP AI-powered dome with audio analytics
This AI-powered camera delivers excellent image quality in 2 MP even in harsh weather and environments. Built on ARTPEC-9, it offers accelerated performance to run impressive analytics applications on the edge. For instance, AXIS Object Analytics can detect, classify, track, and count humans, vehicles, and types of vehicles. In addition, AXIS Audio Analytics will notify you whenever something relevant happens, even when there's no visual indication. This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
- Excellent image quality in 2 MP
- Next-generation AI-powered analytics
- Wide or tele lenses available
- AXIS Audio Analytics preinstalled
- Built-in cybersecurity with Axis Edge Vault
Product Type: Network Camera
Technical Information
HD Recording: Yes
Recording Formats: Full HD
Night Vision: Yes
Night Vision Type: Infrared
Camera Iris: P-iris
Wide Dynamic Range (WDR): Yes
Wide Dynamic Range Detail: 120 dB
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support: EnglishGermanFrenchSpanishItalianRussianSimplified ChineseJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.8"
Color Supported: Color
Field of View: Horizontal field of view: 100°-32° Vertical field of view: 52°-18°
Effective Camera Resolution: 2 Megapixel
Video
Video Formats: H.264B (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)H.264M (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC) Main ProfileMotion JPEGH.264H.265ZipstreamH.264BH.264MH.264HMaximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 60 fps
Audio
Audio Support: Yes
Lens
Lens Type: Varifocal
Minimum Focal Length: 3.4 mm (0.13")
Maximum Focal Length: 9.8 mm (0.39")
Lens Included: Yes
Minimum Aperture: f/2.7
Maximum Aperture: f/1.4
Optical Zoom: 2.9x
Exposure
Shortest Shutter Speed: 1/37000 Second
Longest Shutter Speed: 2 Second
PTZ Modes: Digital PTZPreset PointNetwork & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Gigabit Ethernet
Protocols: IPv4IPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSHTTP/2DiffServ (QoS)FTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPCDPMQTT v3.1.1UDP/TCP/TLSZeroConfIEEE 802.1X (EAP-TLS)IEEE 802.1ARONVIFStorage
Storage Type: Memory Card
Internal Memory: 2 GB
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 10 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Product Material: PolycarbonatePlasticMount Type: Bracket MountJunction Box MountForm Factor: Dome
Durability: Vandal ResistantImpact ResistantWeight (Approximate): 1.87 lb (850 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 122°F (50°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Operating Humidity (Condensing): 10%
Maximum Operating Humidity (Condensing): 100%
Minimum Storage Humidity (Non-condensing): 5%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features:
Forensic WDR3D Noise Reduction2D Noise ReductionDefogPrivacy MaskingAuto Gain ControlBuilt-in MicrophoneDay/NightWide Dynamic RangeAudio DetectionIndoor/Outdoor: Indoor/Outdoor
Package Contents:
- P3285-LVE Dome Camera
- Weathershield
- Installation Guide
- Terminal Block Connector
- Connector Guard
- Cable Gasket
- Owner Authentication Key
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
TAA Compliant: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Warranty
Limited Warranty: 5 Year
