Description:
General Information
Manufacturer: Sharp Electronics
Manufacturer Part Number: PN-UN553V
Brand Name: Sharp
Product Model: PN-UN553V

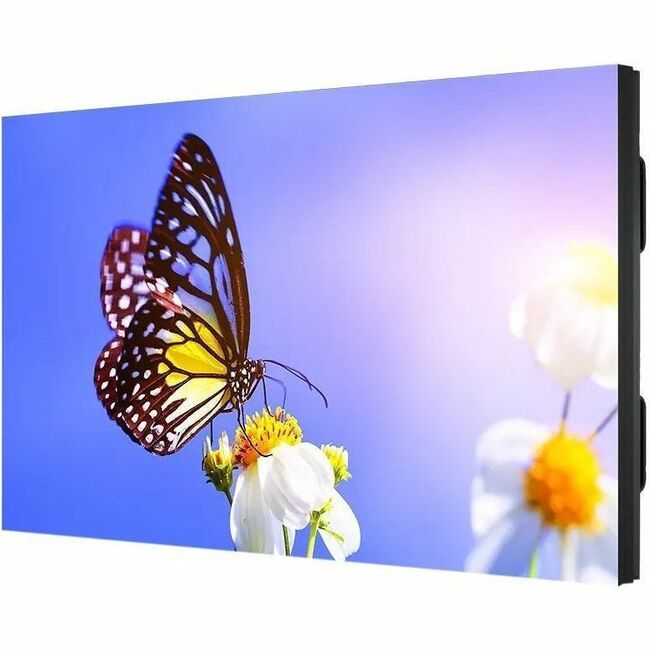

Product Name: 55" Ultra-Narrow Bezel Professional-Grade Display
Marketing Information:
Sharp's 55" PN-UN553V sets the standard for quality color reproduction in video wall environments. Direct LED backlighting and factory calibration for brightness intensity, gamma, uniformity, white point and RGB allows for ideal panel settings and an easy out-of-the-box experience. Brand new panel technology minimizes the bezel gap of this display, allowing for a <1.0mm distance between adjacent displays with a 0.44mm even and near bezel-less design per unit. This display is integrated with the proprietary SpectraView Engine, which not only allows for ultimate color control but also allows for increased color calibration capabilities including white copy, self calibration to an external sensor and manual CIE chromaticity adjustment for maximum control when color matters most. This display also includes both a DisplayPort and an HDMI Out connections for daisy chaining signals up to 4K UHD. This new generation of display also received a full chassis upgrade with faster processing times, evolved daisy chain performance, and new TileMatrixing capabilities.
Features
- SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
- Near Bezel-less panel technology allows for an even 0.44mm design, allowing for the distance between adjacent displays to be <1.0mm
- 500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
- TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
- Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
Product Type: Digital Signage Display
Technical Information
Video Wall Compatible: Yes
Bezel Width (Top): 17.32 mil (0.44 mm)
Bezel Width (Bottom): 17.32 mil (0.44 mm)
Bezel Width (Left): 17.32 mil (0.44 mm)
Bezel Width (Right): 17.32 mil (0.44 mm)
Panel Technology: Super In-plane Switching (S-IPS) Technology
Operation Hours: 24 Hours/7 Days
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 55" (1397 mm)
Screen Size Class: 55" (1397 mm)
Display Screen Type: LCD
High Dynamic Range (HDR): Yes
Response Time: 8 ms
Display Resolution: 1920 x 1080
Orientation: Landscape/Portrait
Backlight Technology: Direct LED
Aspect Ratio: 16:9
Video
Scan Format: 1080p
Native Contrast Ratio: 1,100:1
Brightness: 500 cd/m²
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
DVI: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of HDMI Inputs: 2
Number of DisplayPorts: 2
DisplayPort Output: Yes
RS-232C Input: Yes
Power Description
Input Voltage: 120 V AC230 V ACPhysical Characteristics
VESA Mount Standard: 400 x 400
Mount Type: Table MountStand MountHeight: 26.91" (683.50 mm)
Width: 47.74" (1212.70 mm)
Depth: 4.19" (106.40 mm)
Weight (Approximate): 63.05 lb (28600 g)
Environmental Conditions
Minimum Operating Temperature: 41°F (5°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 140°F (60°C)
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Minimum Storage Humidity: 10%
Maximum Storage Humidity: 90%
Miscellaneous
Application/Usage: Industrial
0 items
):
$5,485.95
