Description:
General Information
Manufacturer: Opengear
Manufacturer Part Number: CM8116-10G-C
Brand Name: Opengear
Product Series: CM8100
Product Model: CM8116-10G

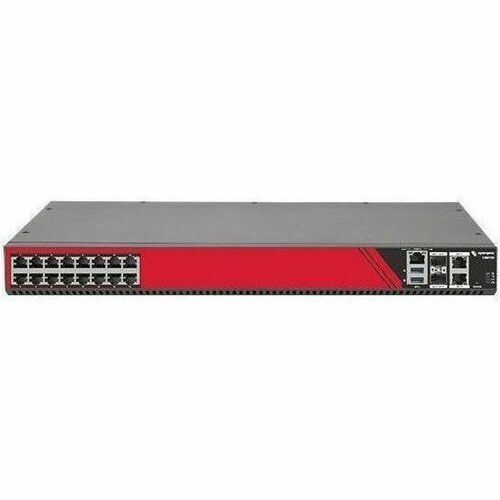

Product Name: CM8100 Console Server
Marketing Information:
Secure remote access for data centers, enterprise networks, and edge sites - with built-in 5G options.
The CM8100 Series is our latest high-density console manager, built to keep critical infrastructure reachable under any condition. It offers options for 1GbE, 10GbE, and 10GbE-5G, enhancing out-of-band management capabilities. This series includes select models equipped with 5G cellular technology and supports up to 96 serial ports. With a TPM 2.0 module, it ensures enterprise-grade security. Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's Lighthouse® Software.
- 16, 32, 48, and 96 port serial console server with Smart Out-of-Band™
- REST API support for automation tools, Docker, and Python scripting
- Built-in 5G cellular modem for enhanced bandwidth, lower latency, and reliability
- Hardware-based TPM 2.0 provides secure boot
- Dual power supplies with independent monitoring
- 10Gb SFP+ uplinks connect directly to high-speed networks in select models
- Port auto-discovery simplifies configuration of serial settings and port labels
- Eliminates the need for serial adapters with selectable software serial ports in select models
- All appliances ship with two C14 power cables standard
Product Type: Device Server
Technical Information
Device Type: Console Server
Connectivity Technology: Wired/Wireless
Processor & Chipset
Processor Manufacturer: ARM
Processor Speed: 1.60 MHz
Memory
Standard Memory: 1.95 GB
Memory Technology: DDR4 SDRAM
Media & Performance
Media Type Supported: Twisted PairOptical FiberI/O Expansions
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Network Standard: 1000Base-T
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
Serial Port: Yes
Management Port: Yes
Total Number of Network Ports: 4
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 2
Number of Serial Ports: 16
Power Description
Input Voltage: 120 V AC230 V ACInput Voltage Range: 100 V AC - 240 V AC
Plug/Connector Type: IEC 60320 C13
Physical Characteristics
Form Factor: Rack-mountable
0 items
):
$4,476.95
