Description:
General Information
Manufacturer: Para Systems, Inc
Manufacturer Part Number: EC1500RTXL2U
Brand Name: Minuteman
Product Line: Encompass
Product Series: RTXL
Product Model: EC1500RTXL2U

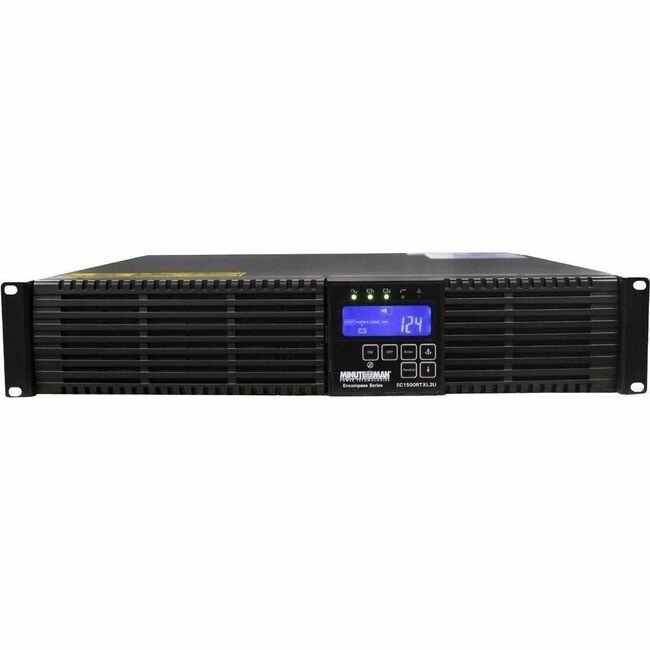

Product Name: Encompass RTXL EC1500RTXL2U 1500VA Rack/Tower/Compact UPS
Marketing Information:
On-Line UPS, Comprehensive Protection
- Compact, true double-conversion online UPS series.
- Offers virtually unlimited runtime solutions with the use of compatible external battery packs.
- Complies with Trade America Act (TAA) regulations for sale to all Federal, State and Local government agencies
- Front panel LCD display for monitoring of UPS condition.
- Output receptacle control for load management applications
- Full 3-year warranty which includes batteries.
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Cord Length: 10 ft (3.05 m)
Application/Usage: MedicalNetworkServerVoIP Phone SystemIP PhoneSecurityEdge ComputingGovernmentSecurity SystemAudio/Video EquipmentEquipmentHospitalFeatures: Cold Start FunctionBuilt-in Bypass SwitchPower Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.35 kW
Input Voltage: 120 V AC
Input Voltage Range: 0 V AC - 160 V AC
Output Voltage: 120 V AC110 V AC127 V ACInput Frequency: 50 Hz60 HzOutput Frequency: 50 Hz60 HzWaveform Type: True Sine Wave
Output Power Factor: 0.9
Display & Graphics
Display: LCD
Management
Network Management: RS-232SNMPInterfaces/Ports
Serial Port: Yes
USB: Yes
EPO Port: Yes
Battery Information
Battery Characteristics: Sealed, Non-spillable, Maintenance-free, Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 15 Minute
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Operating Humidity: 10% - 90%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
Height: 3.50" (88.90 mm)
Width: 18.90" (480.06 mm)
Length: 19.20" (487.68 mm)
Rack Height: 2U
Form Factor: Rack/Tower/Compact
Weight (Approximate): 44.10 lb (20003.42 g)
Miscellaneous
Energy Star: Yes
TAA Compliant: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2Restriction of Hazardous Substances (RoHS)Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
Full 3-year warranty which includes batteries.
