Description:
General Information
Manufacturer: Sharp Electronics
Manufacturer Part Number: DD-EA272F
Brand Name: Sharp
Product Line: MultiSync
Product Model: DD-EA272F
Product Name: 27" FHD Advanced Business-Class Desktop Monitor, USB-C (65W)
Marketing Information:

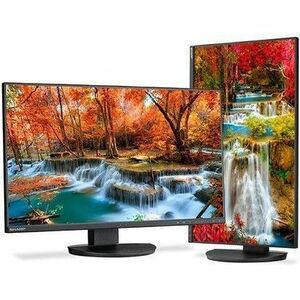

The 27" Sharp MultiSync® EA272F is a Full HD ultra-narrow bezel IPS desktop monitor ideal for demanding commercial environments. Designed with professional color and image quality standards, this 16:9 widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA272F allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, USB-C, VGA and 3-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment. With DisplayPort ouput the EA272F is ideal for multiple monitor configurations and includes ControlSync™ technology which allows users to control up to six EA272F displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor.
Features
- FHD (1920x1080) Resolution
- IPS screen technology allows for optimal viewing angle
- Brightness 250 cd/m2
- Full connectivity, including DisplayPort, HDMI, USB-C and VGA inputs
- Supports multi-monitor configurations with DisplayPort output for video passthrough
- USB-C input delivers 65W of power as well as video and USB over one cable
- USB Hub (2 Up / 3 Down)
- Integrated speakers (stereo 1W + 1W)
- Touch-sensitive OSD® controls are integrated into the bezel
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
- Height-adjust stand, pivot, tilt and swivel capabilities
- ENERGY STAR 8.0 and TCO 9.0
- ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- 3 Year Warranty
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 27"
Viewable Screen Size: 27"
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 6 ms
Response Time Details: 6 ms Typical
Aspect Ratio: 16:9
Pixel Pitch: 0.31000 mm x 0.31000 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Mount Type: Desk Mountable
HDCP Supported: Yes
Features: sRGBSeparate SyncSync on GreenControlSyncAmbient Light SensorEco ModeCarbon Footprint MeterResettable Cost MeterNarrow BezelCarrying HandleRapid Response TechnologyXtraViewOn-screen Display (OSD)On-screen Display (OSD) LockCable ManagementDynamic Visual ModePlug & PlayPower ManagementDisplay Power Management Signaling (DPMS)AccuColorDICOM CompliantXtraView+Wide Viewing AngleKensington LockPicture by PictureErgonomic DesignSmart Sensing TechnologyHorizontal Frequency: 31.50 kHz to 83 kHz
Vertical Frequency: 48 Hz to 75 Hz56 Hz to 75 HzAdjustable Stand: Yes
Stand Adjustments: SwivelHeightPivotTiltActive Display Area (H x V): 23.54" (597.90 mm) x 13.24" (336.30 mm)
Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Color Gamut: 73.5% Adobe RGB75.5% Adobe RGB69.5% NTSC72% NTSC95.1% sRGB101.6% sRGBPixel Per Inch (PPI): 82
Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of USB Ports: 3
Number of USB 3.1 Downstream Ports: 3
USB Type-B: Yes
Built-in Devices
Built-in Devices: USB Hub
Environmental Conditions
Operating Temperature Range: 41°F (5°C) to 95°F (35°C)
Operating Humidity Range: 20% to 80% (Non-condensing)
Maximum Operating Altitude: 6563 ft (2000.40 m)
Power Description
Standby Power Consumption: 300 mW
Maximum Power Consumption: 19 W
Physical Characteristics
VESA Mount Compatible: Yes
Color Family: Black
Product Color: Black
Height: 14.17" (359.80 mm)
Width: 24.02" (610.20 mm)
Depth: 1.80" (45.60 mm)
Height with Stand: 20.76" (527.30 mm)
Width with Stand: 24.02" (610.20 mm)
Depth with Stand: 9.84" (250 mm)
Weight (Approximate): 12.79 lb (5800 g)
Weight with Stand (Approximate): 20.28 lb (9200 g)
Compressed Height with Stand: 14.85" (377.30 mm)
Extended Height with Stand: 20.76" (527.30 mm)
Miscellaneous
Package Contents:
- 27" FHD Advanced Business-Class Desktop Monitor, USB-C (65W)
- Power cord
- DisplayPort cable
- USB A-B cable
- USB-C cable
- ControlSync cable
- Stand
- Setup sheet
- User manual
Application/Usage:
BusinessCommercialEnergy Star: Yes
TCO Certified: Yes
Environmentally Friendly: Yes
Environmental Certification: TCO Certified 9.0
Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
