Description:
General Information
Manufacturer: Sharp Electronics
Manufacturer Part Number: DD-EA242W
Brand Name: Sharp
Product Line: MultiSync
Product Model: DD-EA242W

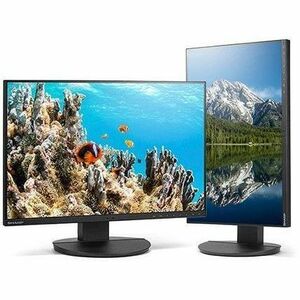

Product Name: MultiSync DD-EA242W Widescreen LED Monitor
Marketing Information:
The 24" Class (24.1" diagonal) Sharp MultiSync® EA242W is a WUXGA ultra-narrow bezel IPS desktop monitor ideal for demanding commercial environments. Designed with professional color and image quality standards, this 16:10 widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA242W allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, USB-C, VGA and 2-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment. With DisplayPort ouput the EA242W is ideal for multiple monitor configurations and includes ControlSync™ technology which allows users to control up to six EA242W displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor.
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 24"
Screen Mode: WUXGA
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 6 ms
Aspect Ratio: 16:10
Pixel Pitch: 0.27000 mm x 0.27000 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Mount Type: Desk Mountable
HDCP Supported: Yes
Features: sRGBSeparate SyncControlSyncAuto Brightness Control (ABC)Ambient Light SensorEco ModeCarbon Footprint MeterResettable Cost MeterUltraNarrow BorderCarrying HandleRapid Response TechnologyAmbix Dual Input TechnologyXtraViewOn-screen Display (OSD)On-screen Display (OSD) LockCable ManagementDynamic Visual ModePlug & PlayDisplay Power Management Signaling (DPMS)AccuColorDICOM CalibratedKensington LockWide Viewing AngleErgonomic DesignSmart Sensing TechnologyCable Lock SlotHorizontal Frequency: 31.50 kHz to 77 kHz
Vertical Frequency: 50 Hz to 60 Hz
Adjustable Stand: Yes
Stand Adjustments: SwivelHeightPivotTiltActive Display Area (H x V): 20.40" (518.16 mm) x 12.70" (322.58 mm)
Video
Maximum Resolution: 1920 x 1200
Standard Refresh Rate: 62 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 300 cd/m²
Color Gamut: 77% Adobe RGB79% Adobe RGB73.1% NTSC76% NTSC99.8% sRGB107% sRGBPixel Per Inch (PPI): 94
Audio
Speakers: Yes
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of USB Ports: 2
Ethernet Technology Details: 1 x RJ-45 Ethernet
Built-in Devices
Built-in Devices: USB Hub
Environmental Conditions
Operating Temperature Range: 41°F (5°C) to 95°F (35°C)
Operating Humidity Range: 20% to 80% (Non-condensing)
Maximum Operating Altitude: 16404 ft (4999.94 m)
Power Description
Operating Power Consumption: 19 W
Standby Power Consumption: 300 mW
Maximum Power Consumption: 65 W
Physical Characteristics
VESA Mount Compatible: Yes
Color Family: Black
Product Color: Black
Height: 13.70" (347.98 mm)
Width: 20.90" (530.86 mm)
Depth: 1.90" (48.26 mm)
Height with Stand: 20.30" (515.62 mm)
Width with Stand: 20.90" (530.86 mm)
Depth with Stand: 9.80" (248.92 mm)
Weight (Approximate): 9.30 lb (4218.41 g)
Weight with Stand (Approximate): 14.80 lb (6713.17 g)
Compressed Height with Stand: 14.40" (365.76 mm)
Extended Height with Stand: 20.30" (515.62 mm)
Miscellaneous
Package Contents:
- MultiSync DD-EA242W Widescreen LED Monitor
- Power Cord
- DisplayPort Cable
- USB-C Cable
- ControlSync Cable
- Stand
- Setup Sheet
- User Manual
Application/Usage: Business
Energy Star: Yes
TCO Certified: Yes
Environmental Certification: TCO Certified 9.0
Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
0 items
):
$585.95
