Description:
General Information
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: LDP163-091C
Brand Name: ViewSonic
Product Series: LDP
Product Model: LDP163-091C

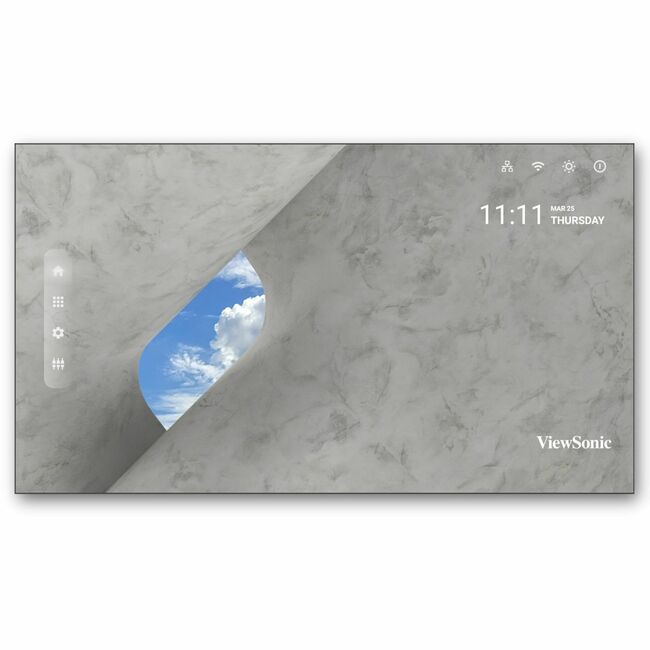

Product Name: Preconfigured 4K All-In-One dvLED Displays
Marketing Information:
Part of the ViewSonic® LDP Performance Series, the ViewSonic® LDP163-091C all-in-one Direct View LED display delivers the same easy installation and accessibility found in our acclaimed LDM series, but takes visuals to the next level with breathtaking 4K Ultra HD resolution and advanced Chip-on-Board (COB) technology. Built to be a stunning centerpiece in any high-end lobby, boardroom, or auditorium, this 163" Direct View LED display delivers stunning, larger-than-life images. As a true all-in-one solution, the LDP163-091C includes the display, controller, and all components in a single part number, making specification, purchasing, and setup incredibly simple. With a high brightness of 600 nits, an incredible 10,000:1 contrast ratio, and powerful dual 30W speakers, this display provides vibrant, high-impact visuals and immersive sound for an exceptional viewing experience.
More from the Manufacturer
Product Type: Digital Signage Display
Technical Information
Ingress Protection (IP) Rating: IP54
Impact Protection (IK) Rating: IK08
Processor & Chipset
Processor Manufacturer: Rockchip
Processor Model: RK3399
Memory
Standard Memory: 4 GB
Memory Technology: DDR4 SDRAM
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 13.58 ft (4140.20 mm)
Screen Size Class: 13.58 ft (4140.20 mm)
Display Screen Type: LCD
Display Resolution: 3840 x 2160
Backlight Technology: Direct View LED
Graphics Controller Manufacturer: ARM
Graphics Controller Model: Mali-T860MP4
Aspect Ratio: 16:9
Maximum LED Life: 11.4 Year
Video
Scan Format: 2160p
Native Contrast Ratio: 10,000:1
Brightness: 600 cd/m²
Color Gamut: 120% Rec. 709
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
Serial: Yes
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 1
Number of HDMI Inputs: 4
Number of HDMI Outputs: 1
Number of Network (RJ-45) Ports: 3
Number of Audio Line Out: 2
Number of HDMI 2.0 Ports: 5
Software
Operating System: Android 9.0 Pie
Power Description
Input Voltage: 120 V AC
Physical Characteristics
Mount Type: Wall Mountable
Mount Surface: Wall
Height: 85.47" (2171 mm)
Width: 11.85 ft (3612 mm)
Depth: 1.61" (41 mm)
Weight (Approximate): 511.47 lb (232000 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Miscellaneous
Package Contents:
- Preconfigured 4K All-In-One dvLED Displays
- Power Cord
- LAN Cable
- IR Extender Cable
- Remote Control
- Installation Guide
- Wall Mount
Application/Usage:
CommercialLobbyBoardroomAuditoriumEnergy Star: No
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
TAA Compliant: No
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
3-year limited warranty on parts and labor on-site service
0 items
):
$149,514.95
