Description:
General Information
Manufacturer: Vertiv
Manufacturer Part Number: GXT5-5KL630RT3UXLN
Brand Name: Vertiv Liebert
Product Series: GXT5
Product Model: GXT5-5KL630RT3UXLN

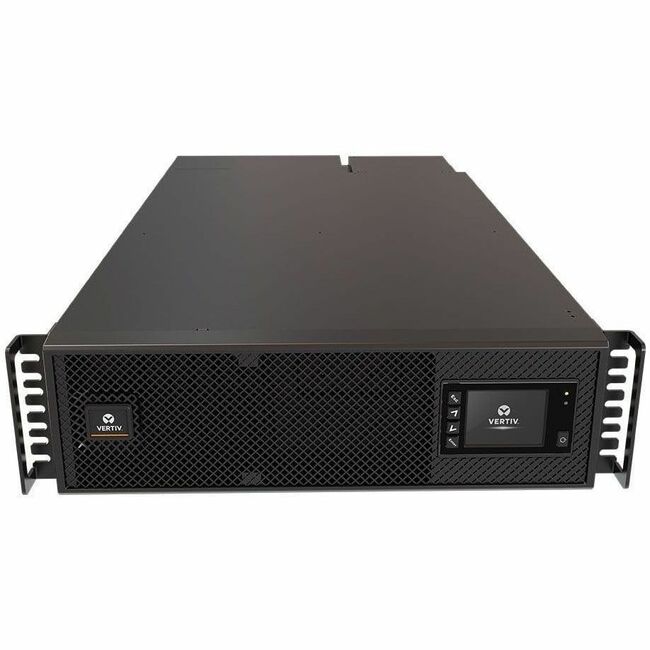

Product Name: GXT5-5KL630RT3UXLN 4900VA Rack/Tower UPS
Marketing Information:
The Vertiv™ Liebert® GXT5 Online Double Conversion UPS family offers the highest level of power conditioning and power protection for critical business IT systems. Continuous power conditioning, zero transfer time, pure sinewave output, and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications.
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: NEMA L6-30P
Receptacle Type: NEMA L6-20RNEMA L6-30RReceptacle Detail: 2 x NEMA L6-20R2 x NEMA L6-30ROverload Protection: Yes
Phase: Single Phase
Efficiency Detail: 98% (ECO Mode)95% (Online Mode)Application/Usage: Critical SystemBusinessIT SystemInfrastructureNetworkBankingFinancialInsuranceEducationHealthcareRetail and WholesaleGeneratorSurge Suppression: Yes
Features: Built-in Bypass Switch
Power Description
Load Capacity (VA): 4.90 kVA
Load Capacity (Watt): 4.60 kW
Input Voltage: 230 V AC
Input Voltage Range: 175 V AC - 280 V AC
Output Voltage: 200 V AC208 V AC220 V AC230 V AC240 V ACWaveform Type: Pure Sine Wave
Circuit Breaker: Yes
Output Power Factor: 0.9
Display & Graphics
Display: LCD
Management
Network Management: SNMP/WebcardRS232/RS485/USB (Modbus)Network Interface CardIntelligent Card SlotBACnet/ModbusAlarm: Alarm
Controls/Indicators
Status Indicators:
LCD Display:
- UPS status
- Power metrics
- Configuration options
- Alarms
- Fault codes to manage the UPS
Interfaces/Ports
Serial Port: Yes
USB: Yes
EPO Port: Yes
Battery Information
Battery Characteristics: External Battery System
Battery Chemistry: Sealed Lead Acid (VRLA)
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
Form Factor: Rack/Tower
Miscellaneous
Energy Star: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
3-year warranty Complete coverage on UPS including batteries.
