Description:
General Information
Manufacturer: Opengear
Manufacturer Part Number: OM2224-24E-L
Brand Name: Opengear
Product Series: OM22xx
Product Model: OM2224-24E

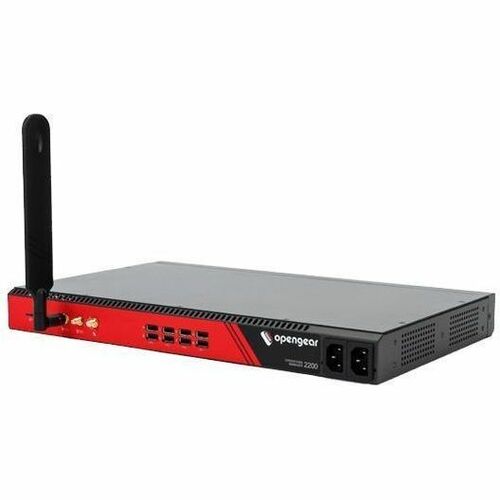

Product Name: OM2200 Operations Manager
Marketing Information:
Opengear OM appliances combine the capabilities of a SmartOOB™ Console Server with the flexibility of Automation.
The OM2200 Console Server, managed through our Lighthouse Software, is configured for data centers and high-density locations. As part of Opengear's Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.
- 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models with optional global LTE-A Pro cellular module
- x86 platform supporting Docker and Python
- Smart OOB includes automated port discovery and VLAN support on the OM appliances
- All appliances now ship with two C14 power cables standard
Product Type: Device Server
Technical Information
Device Type: Console Server
Connectivity Technology: Wireless
Processor & Chipset
Processor Manufacturer: AMD
Processor Speed: 1.40 GHz
Memory
Standard Memory: 7.81 GB
Memory Technology: DDR3 SDRAM
Maximum Memory Supported: 64 GB
Media & Performance
Media Type Supported: Twisted PairOptical FiberI/O Expansions
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Standard: 10/100/1000Base-T1000Base-XInterfaces/Ports
Network (RJ-45): Yes
USB: Yes
Serial Port: Yes
Management Port: Yes
Total Number of Network Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 10
Number of Serial Ports: 24
Power Description
Input Voltage: 120 V AC230 V ACInput Voltage Range: 100 V AC - 240 V AC
Plug/Connector Type: IEC 60320 C14
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.75" (44.45 mm)
Width: 17.25" (438.15 mm)
Depth: 10.25" (260.35 mm)
Weight (Approximate): 7.72 lb (3500 g)
Miscellaneous
TCO Certified: Yes
0 items
):
$8,568.95
