Description:
General Information
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: CP2000PFCRM2U
Brand Name: CyberPower
Product Series: PFC Sinewave UPS
Product Model: CP2000PFCRM2U

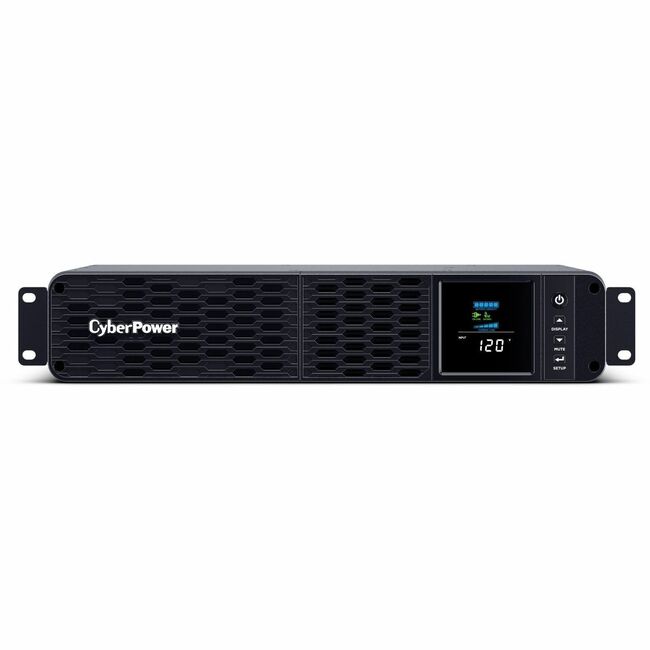

Product Name: CP2000PFCRM2U PFC Sinewave UPS Systems
Marketing Information:
The CP2000PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.
The CP2000PFCRM2U is equipped with Automatic Voltage Regulation (AVR) technology, enabling it to stabilize minor voltage fluctuations without engaging the battery, thereby extending battery life. It features an advanced multifunction control interface with a color LCD, providing real-time system status and alert notifications for at-a-glance monitoring. For enhanced system oversight, remote management and monitoring capabilities are supported via optional Remote Network Management Card or Cloud Monitoring Card integration. With a compact chassis depth of just 10.8 inches, the CP2000PFCRM2U is optimized for deployment in shallow-depth rack environments where space constraints are a critical consideration.
The CP2000PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
More from the Manufacturer
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 8 x NEMA 5-20R
Number of Battery & Surge Outlets: 8
Dataline Protection: RJ-45
Overload Protection: Yes
Cord Length: 6 ft (1.83 m)
Transfer Time: 8 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Application/Usage: Security SystemAudio/Video EquipmentNetwork EquipmentSurge Suppression: Yes
Features: Audible Alarm
Power Description
Load Capacity (VA): 2 kVA
Load Capacity (Watt): 1.20 kW
Input Voltage: 120 V AC
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 50 Hz60 HzOutput Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 1500 J
Circuit Breaker: Yes
Output Power Factor: 0.6
Display & Graphics
Display: LCD
Management
Network Management: Dry ContactSNMP/HTTP Remote MonitoringAlarm: Battery Mode
Controls/Indicators
Status Indicators: Wiring Fault
Interfaces/Ports
Serial Port: Yes
USB: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 2
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2.20 Minute
Backup/Run Time (Half Load): 9 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 95%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 57.60 BTU/h
Physical Characteristics
Product Color: Black
Height: 3.39" (86.11 mm)
Width: 17.05" (433.07 mm)
Depth: 10.79" (274.07 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 28.68 lb (13009.03 g)
Miscellaneous
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
