Description:
General Information
Manufacturer: Adesso, Inc
Manufacturer Part Number: NUSCAN 5200
Brand Name: Adesso
Product Line: NuScan
Product Model: 5200

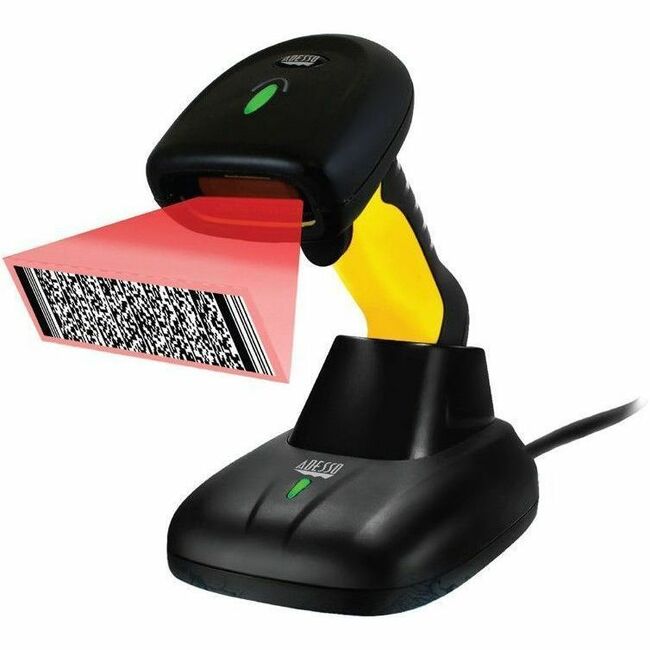

Product Name: NuScan 5200 Barcode Scanner
Marketing Information: Reader with Bluetooth and 2.4 GHz connectivity. Charging base with USB receiver. CMOS sensor 640 × 480 pixels with red/white LED illumination. Antimicrobial and waterproof housing. Reading depth up to 30 cm. High motion tolerance. Compatible with 1D and 2D codes. Drop resistant up to 7 m. Works with Windows and macOS. Black.
More from the Manufacturer
Packaged Quantity: 1 / Piece
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable/Wireless
Scanning Capability:
1D2DBarcode Symbology Supported:
1D:
- UPC-A/E
- EAN13/8
- Code 128
- GS1-128
- Code 39(Plain & Full ASCII)
- Code 93
- Code 11
- Code 25(ITF/Industrial/Matrix/IATA Standard)
- Codabar
- MSI/MSI Plessey
- GS1 DataBar
2D:
- DataMatrix
- QR Code
- Micro QR Code
- PDF417
Light Source: LED
Image Sensor Type: CMOS
Scan Pattern: Bi-directional
Scanner Range: Long Range
Scanning Distance: 18" (457.20 mm)
Reading Angle (Pitch): 45°
Reading Angle (Roll): 50°
Motion Tolerance: 24 in/s (609.60 mm/s)
Maximum Ambient Light: 100000 lux
Drop Specification:
Withstanding 7m freefall drops
Minimum Print Contrast: 30%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Image Sensor Resolution: 640 x 480
Features:
Notification LEDBeep Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Color Family: Black
Product Color: Black
Durability: Water ProofDrop ResistantSpill ResistantShock ResistantHeight: 3.94" (100 mm)
Width: 2.83" (72 mm)
Length: 6.89" (175 mm)
Weight (Approximate): 5.64 oz (160 g)
Miscellaneous
Package Contents:
- NuScan 5200 Barcode Scanner
- Quick Start Guide
Ingress Protection (IP) Rating: IP67
Application/Usage:
RetailWarehouseLibraryHealthcarePharmacyPlatform Supported:
SmartphoneWindowsCountry of Origin: China
