Description:
General Information
Manufacturer: EnGenius Technologies, Inc
Manufacturer Part Number: ECS2530FP
Brand Name: EnGenius
Product Series: ECS
Product Model: ECS2530FP

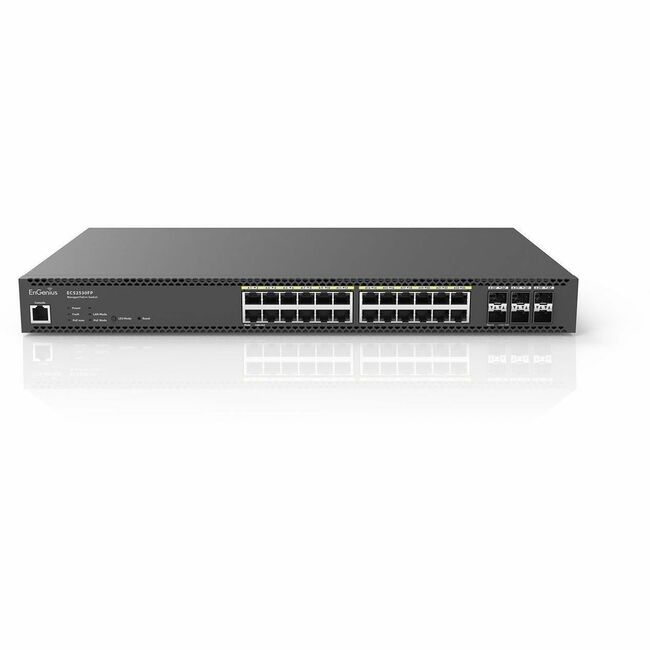

Product Name: ECS2530FP Ethernet Switch
Marketing Information:
Overview
EnGenius Cloud Managed Layer 2+ Multi-Gigabit 2.5Gb Switch, ECS2530FP, provides SMBs with an easy-to-use and cost-effective network solution. With its 24-Port 2.5G PoE as well as 6-Port 10G SFP+ uplink with a 740W budget, it ensures high-speed data transfer for bandwidth-intensive applications. With zero-touch provisioning and centralized cloud management, it simplifies network management and saves time.
Features & Benefits
- 24× 2.5G PoE Ports to unleash elevated speeds for NAS, workstations, or Wi-Fi 6 APs
- 6× 10G SFP+ (fiber) uplink ports to highspeed NAS and servers for a highperformance network
- 8× 802.3af/at/bt PoE++ ports,16× 802.3af/at PoE+ ports with 740W power budget
- Zero-touch provisioning, centralized cloud management, and visualized monitoring
- Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
- Robust security that supports Portbased/MAC-based ACL, Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication, and more
- Optimized for quality voice and video traffic with Voice-VLAN feature
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power - Steady supply of PoE power for the camera during switch upgrades
Packaged Quantity: 1
Product Type: Ethernet Switch
Technical Information
Features: Remote/Cloud ManagementZero-Touch Provisioning (ZTP)DHCP SnoopingFlow ControlQuality of Service (QoS)Access Control ListRemote Monitoring (RMON)Bandwidth ControlLoopback DetectionIGMP SnoopingDHCP RelayVirtual LAN (VLAN)Energy EfficientBroadcast Storm ControlUnicast Storm ControlMulticast Storm ControlReset ButtonLink AggregationInterfaces/Ports
Total Number of Network Ports: 24
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 8 x 2.5 Gigabit Ethernet PoE++ Network Port16 x 2.5 Gigabit Ethernet PoE+ Network Port6 x Gigabit Ethernet Expansion SlotMedia & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet2.5 Gigabit Ethernet10 Gigabit EthernetNetwork Technology: 100Base-TX1000Base-T2.5GBase-T5GBase-TMaximum Data Transfer Rate: 1.25 GB/s
Switching Capacity: 30 GB/s
I/O Expansions
Total Number of Expansion Slots: 6
Expansion Slot Type: SFP+
Number of SFP+ Slots: 6
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3afIEEE 802.3atIEEE 802.3btIEEE 802.1xIEEE 802.3adIEEE 802.3azManagement & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 740 W
Input Voltage: 120 V AC230 V ACPower Source: AC
Physical Characteristics
Form Factor: Standalone
Height: 1.73" (44 mm)
Width: 10.24" (260 mm)
Length: 17.32" (440 mm)
Weight (Approximate): 8.82 lb (4000 g)
Miscellaneous
Package Contents:
- ECS2530FP Ethernet Switch
- 1 x Product Card
- 1 x Power Cord
- 1 x RJ45 Console Cable
- 1 x Rack Mount Kit
