Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 03206-001
Brand Name: AXIS
Product Series: Q35
Product Model: Q3558-LVE

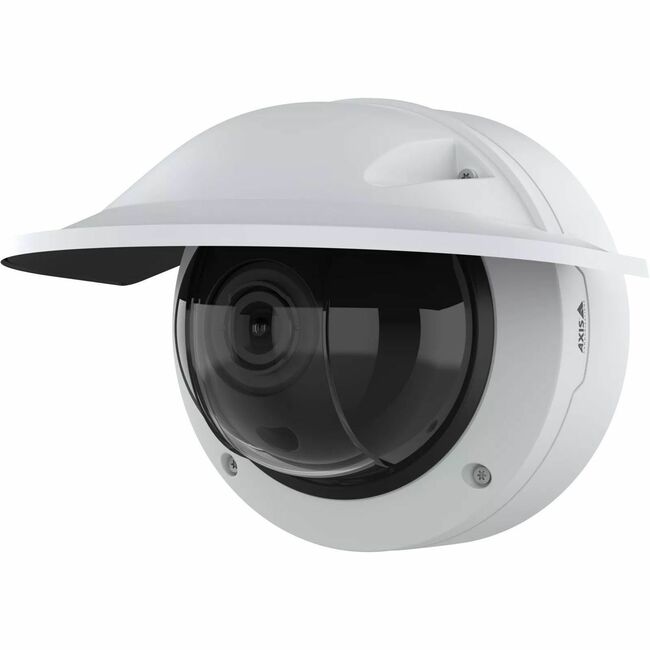

Product Name: Q3558-LVE Dome Camera
Marketing Information:
Built on ARTPEC-9, this AI-powered camera offers 8 MP resolutions and delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring clear, sharp video every time. A deep learning processing unit lets you run advanced features and powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect and track objects and AXIS Audio Analytics will notify you even when there's no visual indication. This robust camera is both vandal- and impact-resistant. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Type: Infrared
Camera Iris: P-iris
Wide Dynamic Range Detail: 120 dB
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support: EnglishGermanFrenchSpanishItalianRussianSimplified ChineseJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/1.2"
Color Supported: Color
Field of View: Horizontal field of view: 104°-50° Vertical field of view: 56°-28°
Effective Camera Resolution: 8 Megapixel
Video
Video Formats: H.264B (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)H.264M (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC) Main ProfileAVIMotion JPEGH.264H.265Maximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 60 fps
Audio
Audio Support: Yes
Lens
Lens Type: Varifocal
Minimum Focal Length: 6.3 mm (0.25")
Maximum Focal Length: 13 mm (0.51")
Lens Included: Yes
Optical Zoom: 2x
Exposure
Shortest Shutter Speed: 1/67500 Second
Longest Shutter Speed: 2 Second
PTZ Modes: Digital PTZPreset PointNetwork & Communication
Remote Management: Yes
Ethernet Technology: Ethernet
Protocols: IPv4IPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSHTTP/2TLSDiffServ (QoS)FTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPCDPMQTT v3.1.1RFC 3164/5424UDP/TCP/TLSZeroConfONVIFStorage
Storage Type: Memory Card
Internal Memory: 4 GB
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 25.50 W
Input Voltage: 8 V DC28 V DCPower Source Type: PoEDCPhysical Characteristics
Color Family: White
Product Color: White
Product Material: PolycarbonateAluminumPlasticMount Type: Bracket MountRecessed MountPendant MountForm Factor: Dome
Durability: Vandal ResistantImpact ResistantWeight (Approximate): 5.09 lb (2310 g)
Environmental Conditions
Minimum Operating Temperature: -58°F (-50°C)
Maximum Operating Temperature: 131°F (55°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Operating Humidity (Non-condensing): 10%
Maximum Operating Humidity (Non-condensing): 100%
Minimum Storage Humidity (Non-condensing): 5%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features:
Smart Object DetectionBuilt-in CybersecurityWide Dynamic RangeNoise Reduction2D Noise Reduction3D Noise ReductionWhite BalanceDay/NightDefogPrivacy MaskingIndoor/Outdoor: Outdoor
Package Contents:
- Q3558-LVE Dome Camera
- Weathershield
- Installation guide
- Terminal block connectors
- Connector guard
- Cable gaskets
- Owner authentication key
Impact Protection Rating: IK10
Ingress Protection Rating:
IP66IP6K9KTAA Compliant: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Waste Electrical and Electronic Equipment Directive (WEEE) Warranty
Limited Warranty: 5 Year
