Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02971-001
Brand Name: AXIS
Product Series: Q35
Product Model: Q3546-LVE

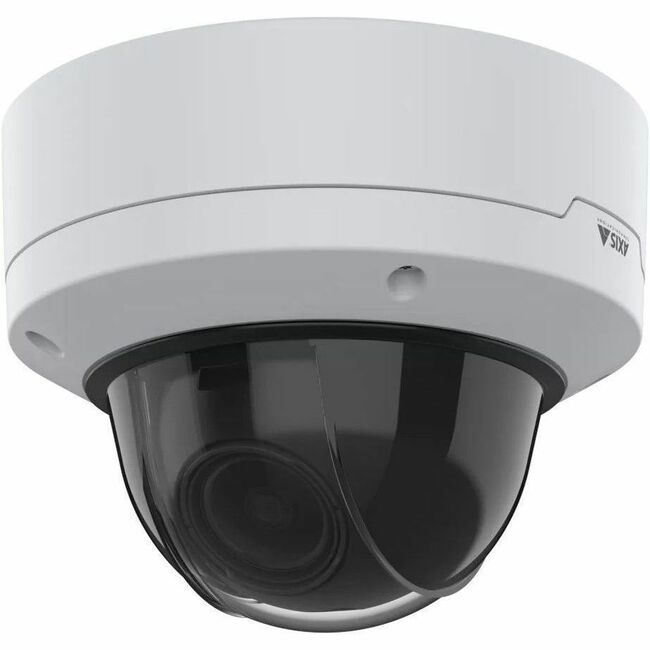

Product Name: Q3546-LVE Dome Camera
Marketing Information:
Built on ARTPEC-9, this AI-powered camera offers 4 MP resolutions and delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring clear, sharp video every time. A deep learning processing unit lets you run advanced features and powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect and track objects. Made from high-grade aluminum, this robust camera is both vandal- and impact-resistant. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access
- Outstanding image quality in 4 MP
- Next-generation AI-powered analytics
- IR-shielded dome to prevent reflections
- Wide or tele lenses available
- Built-in cybersecurity with Axis Edge Vault
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Type: Infrared
Camera Iris: P-iris
Wide Dynamic Range (WDR): Yes
Wide Dynamic Range Detail: 120 dB
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support: EnglishGermanFrenchSpanishItalianRussianSimplified ChineseJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/1.8"
Color Supported: Color
Field of View: Horizontal field of view: 101°-44° Vertical field of view: 54°-25°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats: H.264B (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)H.264M (MPEG-4 Part 10/AVC)AVIMotion JPEGZipstreamH.264H.265H.265 (MPEG-H Part 2/HEVC) Main ProfileMaximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 120 fps
Audio
Audio Support: Yes
Lens
Lens Type: Varifocal
Minimum Focal Length: 4.7 mm (0.19")
Maximum Focal Length: 10 mm (0.39")
Lens Included: Yes
Minimum Aperture: f/1.2
Maximum Aperture: f/1.1
Optical Zoom: 2.1x
Exposure
Shortest Shutter Speed: 1/49500 Second
Longest Shutter Speed: 2 Second
PTZ Modes: Preset PointDigital PTZNetwork & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Gigabit Ethernet
Protocols: HTTPHTTPSTCPFTPSFTPONVIFIPv6 USGv6IPv4TLSCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMP (v1/v2/v3)NTPDDNSIGMPv1/v2/v3RTCPICMPARPSSHZeroConfStorage
Storage Type: Memory Card
Internal Memory: 4 GB
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 25.50 W
Input Voltage: 8 V DC28 V DC12 V DCPower Source Type: PoEDCPhysical Characteristics
Color Family: White
Product Color: White
Product Material: AluminumPolycarbonateMount Type: Bracket Mount
Form Factor: Dome
Durability: Vandal ResistantImpact ResistantWeight (Approximate): 5.20 lb (2360 g)
Environmental Conditions
Minimum Operating Temperature: -58°F (-50°C)
Maximum Operating Temperature: 131°F (55°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Operating Humidity (Non-condensing): 10%
Maximum Operating Humidity (Non-condensing): 100%
Minimum Storage Humidity (Non-condensing): 5%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features:
Object AnalyticsBuilt-in CybersecurityNoise Detection3D Noise Reduction2D Noise ReductionPrivacy MaskingForensic WDRAuto Gain ControlWide Dynamic RangeDefogIndoor/Outdoor: Indoor/Outdoor
Package Contents:
- Q3546-LVE Dome Camera
- Weathershield
- Installation Guide
- Terminal block connectors
- Connector Guard
- Cable Gaskets
- Owner Authentication Key
Impact Protection Rating: IK10
Ingress Protection Rating:
IP66IP6K9KIP69TAA Compliant: Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Warranty
Limited Warranty: 5 Year
