Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02943-001
Brand Name: AXIS
Product Series: Q63
Product Model: Q6300-E

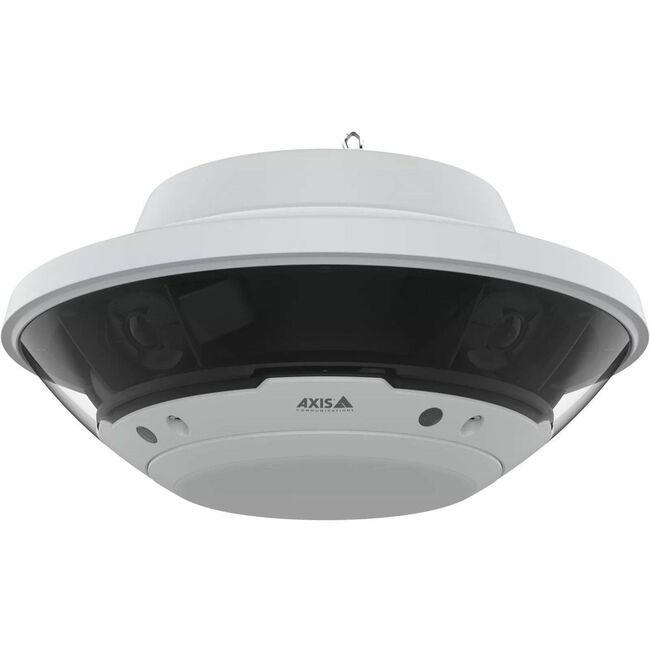

Product Name: Q6300-E Panoramic Camera
Marketing Information:
This multidirectional camera offers 4x5 MP with four ½" sensors. Designed for operation with AXIS Q61/Q63/P56 PTZ Series, you can move from overview to zoomed-in details in one click. Directional audio detection redirects the PTZ camera to the audio source whenever an audio incident is detected. A deep learning processing unit lets you run advanced features and powerful analytics at the edge. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Furthermore, a USB port allows installers to insert a Wi-Fi dongle and quickly see the camera view as they adjust it.
- 360° camera with 4 x 5 MP sensors
- Current AXIS Q61/Q63/P56-E PTZ Camera recommended
- Easy installation with support for Wi-Fi dongle
- Directional audio detection
- Built-in cybersecurity with Axis Edge Vault
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision Type: Infrared
Camera Iris: Fixed
Wide Dynamic Range Detail: 120 dB
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support: EnglishGermanFrenchSpanishItalianRussianSimplified ChineseJapaneseKoreanPortuguesePolishTraditional ChineseDutchCzechSwedishFinnishTurkishThaiVietnameseDisplay & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2"
Color Supported: Color
Field of View: Horizontal field of view: 360°, 108.4° for each sensor Vertical field of view: 84°
Effective Camera Resolution: 5 Megapixel
Number of Sensors: 4
Video
Video Formats: H.264B (MPEG-4 Part 10/AVC)H.264M (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC)Motion JPEGZipstreamH.265H.264Maximum Video Resolution: 2592 x 1944
Maximum Frame Rate: 30 fps
Audio
Audio Support: Yes
Lens
Lens Type: Fixed
Maximum Focal Length: 3.7 mm (0.15")
Lens Included: Yes
Lens Mount Type: M14
Maximum Aperture: f/2.0
Exposure
Shortest Shutter Speed: 1/66500 Second
Longest Shutter Speed: 2 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Gigabit Ethernet
Protocols: IPv4IPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSHTTP/2TLSFTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMP (v1/v2/v3)SNMP (MIB-2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPCDPMQTT v3.1.1UDP/TCP/TLSZeroConfStorage
Storage Type: Memory Card
Internal Memory: 8 GB
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 103.40 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Product Material: PolycarbonateAluminumForm Factor: Dome
Weight (Approximate): 8.82 lb (4000 g)
Environmental Conditions
Minimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 122°F (50°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Operating Humidity (Condensing): 10%
Maximum Operating Humidity (Condensing): 100%
Minimum Storage Humidity (Non-condensing): 5%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features:
Back Light Compensation (BLC)Highlight Compensation (HLC)3D Digital Noise Reduction2D Digital Noise Reduction (2DNR)Wide Dynamic RangeAudio CompressionHuman DetectionFace DetectionVehicle DetectionActive Tampering AlarmIndoor/Outdoor: Indoor/Outdoor
Package Contents:
- Q6300-E Panoramic Camera
- Adapter bracket
- installation guide
- Owner authentication key
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
TAA Compliant: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Warranty
Limited Warranty: 5 Year
