Description:
General Information
Manufacturer: EnGenius Technologies, Inc
Manufacturer Part Number: ECW526-P
Brand Name: EnGenius
Product Model: ECW526

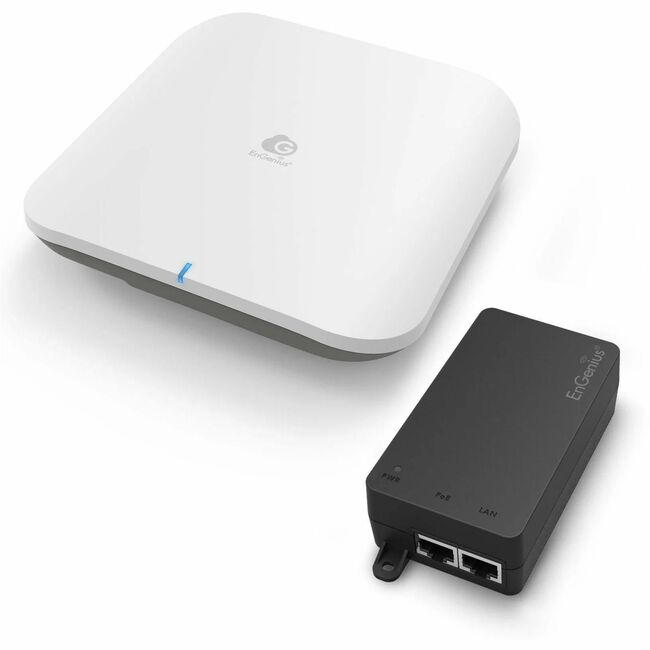

Product Name: Cloud Managed 2x2x2 Indoor WiFi 7 Access Point with PoE++ 60W 802.3bt 10GbE Injector
Marketing Information:
Tri-band wireless access point reaching speeds of 5,800 Mbps on 6GHz, 2,900 Mbps on 5GHz, and 700 Mbps on 2.4GHz
The EnGenius Cloud Managed ECW526-P comes with the sleekly designed Wi-Fi 7 access point ECW526 and a PoE++ injector EXT50660XBT for a power source. The ECW526 is a tri-band 2x2x2 indoor AP that can support up to 5.8 Gbps on 6GHz, 2.9 Gbps on 5GHz, and 720 Mbps on 2.4GHz. This AP has a built-in 10 GbE PoE+ port for high throughput and placing the AP in hard-to-reach areas making it more convenient when mounting. The ECW526-P also comes with the
EXT5060XBT PoE++ (802.3bt) injector, which provides a 10 GbE port for high-speed connections and delivers 60 watts to power the Wi-Fi 7 AP at distances of up to 100 meters from the power source.
Packaged Quantity: 1
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
Network Band: Tri Band
Frequency Band: 2.40 GHz5 GHz6 GHzTotal Number of Antennas: 6
Number of Internal Antennas: 6
Indoor/Outdoor: Indoor
Wireless Transmission Speed: 9.60 Gbit/s
MIMO Technology: Yes
MIMO Type: Single User/Multi User MIMO
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard: WPA3-ENTWPA3-PSK (SAE)WPA3/WPA2-PSK MixedWPA2-ENTWPA2-PSK (AES)WPA3Mesh Supported: Yes
Interfaces/Ports
Ethernet Technology: 10 Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Network & Communication
Wi-Fi Generation: Wi-Fi 7
Communication Protocols: SNMPv1/v2c/v3
Power Description
Power Consumption: 21 W
Physical Characteristics
Form Factor: Ceiling MountableRail-mountableWall MountableAntenna Form Factor: Internal
Height: 1.56" (39.50 mm)
Width: 7.48" (190 mm)
Depth: 7.48" (190 mm)
Weight (Approximate): 1.59 lb (720 g)
Miscellaneous
Package Contents:
- Cloud Managed 2x2x2 Indoor WiFi 7 Access Point with PoE++ 60W 802.3bt 10GbE Injector
- 1 x Ceiling Mount Base
- 1 x Ceiling and Wall Mount Screw Kits
- 1 x T-rail Mount Kit
- 1 x Product Card
Application/Usage: Office
Warranty
Limited Warranty: 5 Year
