Description:
General Information
Manufacturer: Fractal Design
Manufacturer Part Number: FD-C-MES3A-04
Brand Name: Fractal Design
Product Line: Meshify 3

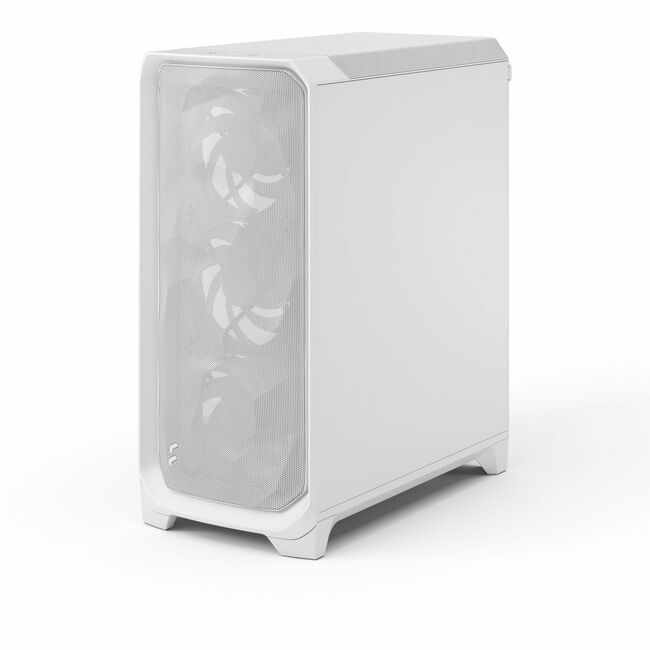

Product Name: Computer Case Meshify 3
Marketing Information:
Advanced airflow
Access performance engineering with ample ventilation and an air guide which directs airflow towards components to improve GPU cooling.
Evolved design
Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
White
Black
Designed for gaming
Create a powerful gaming system with space for graphics cards up to 349 mm in length and E-ATX (277 mm) motherboard compatibility.
Ambience Pro RGB Version
Enhanced lighting
Create the right atmosphere with advanced ARGB Gen 2 ambient lighting, including an animated PC startup effect.
Ambience Pro RGB Version
Tailored experience
Customize your lighting and fans easily with a download-free configuration tool, accessed via the included Adjust Pro Hub.
Easily accessible
Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.
Powerful fans included
Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Cooler compatible
Cool your build further with up to a 280 mm top radiator and 360 mm front radiator, with removable brackets for easy installation.
Accessible I/O
Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.
Clean finish
Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
Package Type: Retail
Product Type: Gaming Computer Case
Technical Information
Motherboard Supported: EATXATXMicro ATXMini ITXNumber of Fans Supported: 7
Number of Fans Installed: 3
Fan Size Supported: 4.72" (120 mm)5.51" (140 mm)Installed Fan Size: 5.51" (140 mm)
Installed Fan Size Details: 3 × 140mm
Features: Dust Filter
Window Panel: Yes
Window Panel Location: Left Side
Bays
Number of Internal 3.5" Bays: 2
Number of Internal 2.5" Bays: 4
Number of Total Expansion Bays: 6
I/O Expansions
Total Number of Expansion Slots: 7
Interfaces/Ports
Total Number of USB Ports: 3
USB Port Details: 2 x USB 3.2 Gen 1 Type-A1 x USB 3.2 Gen 2x2 Type CFront USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Microphone: Yes
Headphone/Microphone Combo Port: Yes
Power Description
Power Supply Installed: No
Physical Characteristics
Color Family: White
Product Color: WhiteTintProduct Material: MeshSteelTempered GlassCooler Type: Fan/Liquid Cooler
Form Factor: Mid-tower
Maximum CPU Cooler Height: 6.81" (173 mm)
Maximum PSU Length: 7.09" (180 mm)
Maximum GPU Length: 13.74" (349 mm)
Height: 19.96" (507 mm)
Width: 9.02" (229 mm)
Depth: 17.05" (433 mm)
Weight (Approximate): 19.40 lb (8800 g)
Miscellaneous
Package Contents:
- Computer Case Meshify 3
- Manual
- Red Note
- Accessory Box (9 x Motherboard Screw, 4 x PSU Screw, 24 x SSD Screw, 8 x HDD Screw, 1 x Motherboard Standoff, 8 x HDD Rubber, 4 x Zip Tie)
Warranty
Limited Warranty: 2 Year
