General Information

---

Manufacturer: ViewSonic Corporation
Manufacturer Part Number: VX3228C-2K
Brand Name: ViewSonic
Product Model: VX3228C-2K

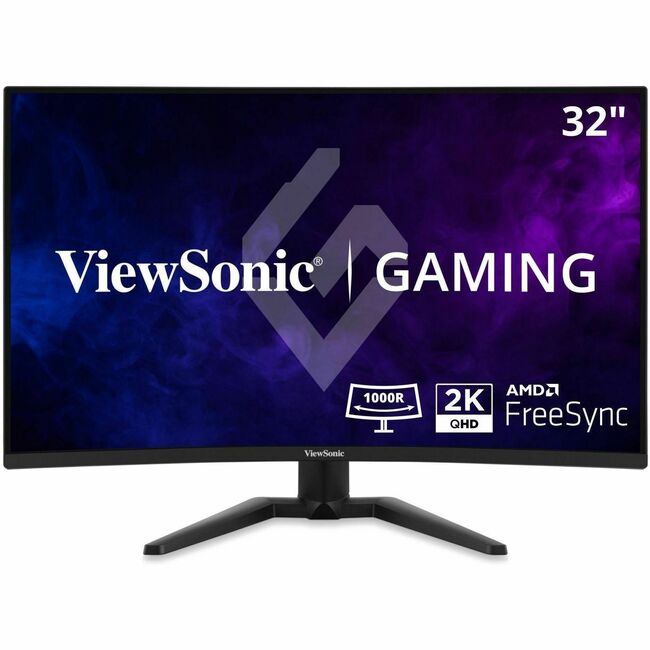

Product Name: 32" Curved 1440p 1ms 180Hz Gaming Monitor with FreeSync
Marketing Information: Work hard and play harder with the ViewSonic® VX3228C-2K monitor. Designed with an immersive 32" 1000R curved screen and stunning WQHD 2560 x 1440 resolution, the VX3228C-2K monitor provides an incredible viewing experience for both office use and home entertainment. And with features including a 180Hz* refresh rate, 1ms (MPRT) response time and AMD FreeSync™ technology, this monitor virtually eliminates screen tearing and stuttering for a silky-smooth gaming experience. The VX3228C-2K also comes equipped with ViewSonic's exclusive ViewMode™ presets, which deliver optimized screen performance for various usage scenarios. Two HDMI (v2.0) inputs and one DisplayPort (v1.4) input offer flexible connectivity for your favorite devices.

*180Hz refresh rate with DisplayPort

More from the Manufacturer

Product Type: Gaming LED Monitor

Technical Information

---

Number of Screens: 1
Screen Size Class: 32"
Viewable Screen Size: 31.5"
Screen Mode: WQHD
Panel Technology: Vertical Alignment (VA)
Response Time: 1 ms
Response Time Details:

1ms MPRT

2ms GTG

Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Features:

Anti-glare

On-screen Display (OSD)

Cable Lock Slot

ViewMode

Horizontal Frequency:

28 kHz to 214 kHz - HDMI

28 kHz to 263 kHz - DisplayPort

Vertical Frequency:

48 Hz to 144 Hz - HDMI

48 Hz to 180 Hz - DisplayPort

Curved Screen: Yes
Stand Adjustments: Tilt
Glass Hardness: 3H

Video

---

Maximum Resolution: 2560 x 1440
Standard Refresh Rate: 180 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 3,000:1
Dynamic Contrast Ratio: 50,000,000:1
Brightness: 300 cd/m²
Tearing Prevention Technology: FreeSync

Audio

---

Number of Speakers: 2
Speakers: Yes

Interfaces/Ports

---

HDMI: Yes
DisplayPort: Yes
Number of HDMI Inputs: 2
Total Number of HDMI Ports: 2
Number of DisplayPorts: 1
Number of HDMI 2.0 Ports: 2

Environmental Conditions

---

Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
Operating Humidity Range: 20% to 90% (Non-condensing)

Power Description

---

Operating Power Consumption: 26 W
Standby Power Consumption: 300 mW
Maximum Power Consumption: 36 W

Physical Characteristics

---

VESA Mount Compatible: Yes
Color Family: Black
Color: Black
Height: 16.59" (421.30 mm)
Width: 27.66" (702.50 mm)
Depth: 4.09" (103.90 mm)
Height with Stand: 20" (507.90 mm)
Width with Stand: 27.66" (702.50 mm)
Depth with Stand: 10.35" (262.80 mm)
Weight (Approximate): 10.14 lb (4600 g)
Weight with Stand (Approximate): 11.68 lb (5300 g)

Miscellaneous

---

Package Contents:

• 32" Curved 1440p 1ms 180Hz Gaming Monitor with FreeSync
• DisplayPort Cable
• AC/DC Adapter
• Quick Start Guide

Application/Usage:

Gaming

Home

Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
Energy Efficiency Certification: ENERGY STAR 8.0

Warranty

---

Limited Warranty: 3 Year
